The average weight of carbon bike frames is usually between 900 grams and 1,500 grams. This weight is very important for how well you cycle. A lighter bike needs less power to move. This makes it easier to climb hills and go faster. Research shows that even small weight changes can affect performance. This is especially true in races. For example, if you reduce the bike’s weight by 30%, the total weight with the rider only goes down by 4%. Knowing about carbon bike frame weight helps you choose the best bike for you.
Key Takeaways
Carbon bike frames usually weigh from 900 grams to 1,500 grams. A lighter frame helps you ride better, especially in races.
High-quality carbon frames use better materials and building methods. This makes the bike lighter and stronger. It can make your ride more enjoyable.
Picking a lighter bike can greatly improve your power-to-weight ratio. This makes it easier to go uphill and speed up.
Knowing the differences between carbon, aluminum, and steel frames helps you pick the best bike for you. It also matches your riding style.
Frame size affects weight directly. Bigger frames use more material and are heavier. Think about size when choosing a bike for the best performance.

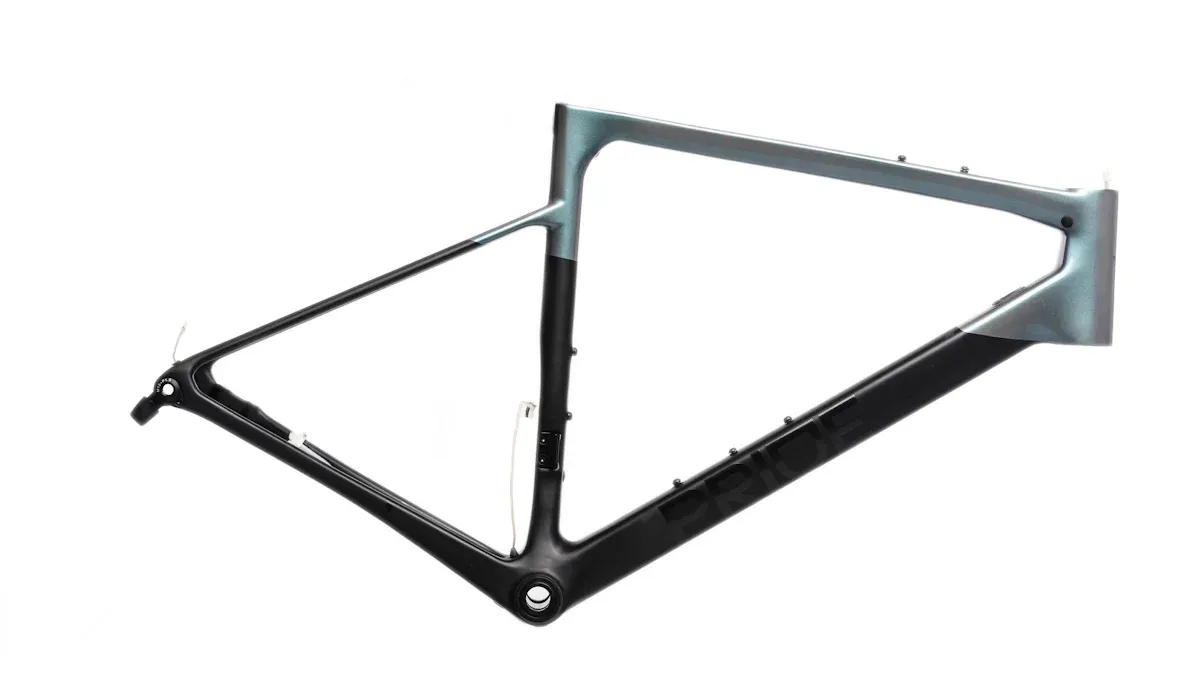

Carbon Bike Frame Weight
Typical Weight Range
When you look at carbon bike frames, their weights usually go from 900 grams to 1,500 grams. This range shows how different designs and uses can change the weight. For example, racing frames are lighter because they focus on speed. You might see very light frames like the S-Works Crux SRAM RED XPLR, which weighs just 6.93 kg (15.3 lbs). Heavier models, like the Ridley ASTR RS, can weigh about 7.62 kg (16.8 lbs).
Bike Frame | Weight (kg) | Weight (lbs) |
|---|---|---|
S-Works Crux SRAM RED XPLR | 6.93 | 15.3 |
Ridley ASTR RS | 7.62 | 16.8 |
The weight of your carbon bike frame really affects how you cycle. A lighter frame helps you climb hills easier and go faster. Even small weight cuts can make a big difference in your ride, especially in races.
High-End vs. Mid-Range Models
The main differences between high-end and mid-range carbon bike frames are in materials and how they are made. High-end frames use higher quality carbon fiber, which gives a high strength-to-weight ratio. This means you get a lighter frame that is still strong. On the other hand, mid-range models often use regular carbon fiber, which can make them heavier.
Here’s a look at features that cause weight differences:
Feature | High-End Frames | Mid-Range Frames |
|---|---|---|
Material Quality | Higher quality carbon fiber | Standard carbon fiber |
Construction Method | Modified monocoque construction | Bonded carbon fiber tubes |
Resin Usage | Less resin, leading to lighter weight | More resin, resulting in heavier frame |
Fiber Thickness | Thinner layers for weight reduction | Thicker layers for cost-effectiveness |
Fiber Direction | Optimized for performance | Standard orientation |
Labor Intensity | More labor-intensive processes | Less labor-intensive processes |
High-end models usually weigh less because of their better building methods and designs. This can really help performance, especially for serious cyclists.
Knowing the weight of carbon bike frames helps you choose the right bike for your needs. Whether you want speed or comfort, understanding the differences between high-end and mid-range options can help you decide.
Comparison with Other Materials
When you pick a bike frame, you often look at carbon fiber, aluminum, and steel. Each material has special traits that change weight and how well the bike performs.
Carbon vs. Aluminum
Carbon fiber bike frames are usually lighter than aluminum ones. Carbon frames weigh about 700–1100 grams. Aluminum frames are heavier, weighing around 1400–1800 grams. Here’s a quick comparison:
Material | Average Weight Range |
|---|---|
Carbon | 700–1100g |
Aluminum | 1400–1800g |
Advantages of Carbon Fiber Bike Frames:
Lightweight: Great for racing or climbing hills.
Stiffness: Better energy transfer from your pedaling.
Customizability: Can be shaped for better aerodynamics.
Disadvantages of Carbon Fiber Bike Frames:
Price: Usually costs more than aluminum.
Durability: Can crack on impact, which is costly to fix.
Advantages of Aluminum Bike Frames:
Cost-Effective: Cheaper than carbon frames.
Durability: Strong against impacts and easy to repair.
Disadvantages of Aluminum Bike Frames:
Ride Comfort: Can feel rough on bumpy roads.
Limited Customizability: Less flexible in design options.
Carbon vs. Steel
When you compare carbon to steel, carbon fiber frames are the lightest choice. Steel frames are heavier but offer good durability and comfort. Here’s how they compare:
Material | Weight Characteristics | Notes |
|---|---|---|
Carbon Fiber | Lightest option, great for racing | Strong and allows for detailed designs |
Steel | Heavier than carbon frames | Durable, easy to repair, and comfortable |
Chromoly Steel | Better strength-to-weight ratio than regular steel | Lighter and tougher than standard steel frames |
Carbon fiber is much lighter and stiffer than steel, making it perfect for racing. Steel frames are heavier but can give a more comfortable ride. With the right parts, carbon fiber bike frames can be made to be the lightest, helping with weight balance.
Factors Influencing Weight
Frame Size
The size of the frame is very important for the weight of carbon bike frames. Bigger frames usually weigh more because they use more material. Here’s a quick look at common frame sizes and their weights:
Frame Size | Weight (grams) |
|---|---|
Lower Modulus | 1000 – 1200 |
Higher Modulus | 800 – 1000 |
For example, a 49cm frame weighs about 1110g. A 58cm frame can weigh up to 1200g. When you pick a frame, think about how the size affects the weight and your ride. A lighter frame can help you climb better and go faster.
Design and Construction Techniques
The design and how carbon fiber bike frames are made really affect their weight. Here are some key features that change the weight:
Carbon fiber frames balance being light and strong.
The type of resin, layer thickness, and building style all affect the frame’s weight.
Engineers can change strength or flex in important areas to improve performance.
New technology in carbon fiber has made frames lighter. For example, using strong carbon fibers makes frames lighter and stronger than aluminum. New building methods, like true monocoque frame construction, remove weak spots. This makes the frame lighter, stiffer, and stronger.
Construction Technique | Description | Benefits |
|---|---|---|
Braided Carbon Structure (BCS) | Braids carbon fibers into sleeves and uses Resin Transfer Molding (RTM) for curing. | Creates a strong lattice of fibers, making it lighter. |
True Monocoque Frame | Made as one piece using a single mold. | Removes weak points, making it lighter and stronger. |
By knowing these factors, you can choose a carbon bike frame that fits your performance needs.
Average Weight of a Carbon Road Bike
Typical Weight Range
When you look at the average weight of a carbon road bike, it usually falls between 15 to 17 pounds (6.8 to 7.7 kg) for high-end models. Mid-range carbon road bikes can weigh up to 18 to 20 pounds (8.1 to 10 kg). Here’s a quick look at the weight ranges for different types of road bikes:
Bike Type | Weight Range (pounds) |
|---|---|
Carbon Road Bikes | < 15 |
High-End Road Bikes | 15 – 17 |
Mid-Range Road Bikes | 18 – 20 |
Gravel Bikes | 18 – 26 |
High-end carbon bikes often weigh less than 15 pounds, but these bikes are not common. The UCI, which oversees professional cycling, has a minimum weight limit for racing bikes at 6.8 kilograms (about 14.99 pounds). This limit helps keep things fair in races.
Performance Implications
The weight of your bike really affects how well you cycle. Lighter bikes need less power to move, especially when going uphill. Here are some important points to think about:
Power-to-Weight Ratio: A lighter bike improves your power-to-weight ratio. This is important for climbing and speeding up. It means you can go faster with less effort.
Climbing Performance: Small weight cuts can lead to better climbing speed. If you want to tackle steep hills, a lighter bike can help a lot.
Competitive Edge: In races, even small weight cuts can boost your performance. High-end bikes usually have better parts and designs that help you go faster.
While bike weight is important, don’t forget that your weight as a rider also matters. The mix of your weight and the bike’s weight decides how well you can ride.
In short, knowing the average weight of carbon bike frames is very important for cyclists. Here are the main points to keep in mind:
Criteria | Carbon Frame | Aluminum Frame |
|---|---|---|
Weight | Light, great for racing | Usually heavier than carbon |
Picking a carbon bike frame has many benefits:
Small weight cuts can really change race results.
For different types of cycling, people have different likes for bike frame weight:
Cycling Discipline | Characteristics | |
|---|---|---|
Mountain Bikes | 9.5 – 13.1 | Focus on strength and stability for rough trails |
Road Bikes | 6.8 – 10 | Prefer lighter frames for speed and efficiency |
City Bikes | 8.32 | Moderate weight for comfort and flexibility in city riding |
By thinking about these things, you can make smart choices that improve your cycling experience.
FAQ
What is the average weight of a carbon bike frame?
A carbon bike frame usually weighs between 900 grams and 1,500 grams. This weight can really change how well you cycle, especially in races.
How does frame size affect weight?
Frame size affects weight directly. Bigger frames use more material, so they are heavier. Smaller frames usually weigh less, which helps with climbing and speed.
Are high-end carbon bike frames worth the investment?
Yes, high-end carbon bike frames often have better materials and building methods. They offer improved performance, durability, and weight savings, making them great for serious cyclists.
How does carbon compare to aluminum in terms of weight?
Carbon bike frames are lighter than aluminum ones. Carbon usually weighs between 700–1100 grams, while aluminum frames weigh around 1400–1800 grams. This difference affects how well you cycle.
What is the average hybrid bike weight?
The average weight of a hybrid bike can vary but is usually between 25 to 30 pounds (11.3 to 13.6 kg). This weight balances comfort and performance for different types of riding.
