Knowing bike frame anatomy helps you pick the right bike. Every part of the frame changes how you ride. It affects comfort and how well the bike works. For example:
Geometry is important. Traditional, compact, and semi-compact frames change how steady the bike is. They also change how fast it reacts and how you sit.
Materials matter too. Aluminum, steel, titanium, and carbon fiber change how the bike feels. They also change how heavy the bike is.
Fit is very important. The right size gives you more comfort. It also helps you control the bike better.
A good guide about bike anatomy shows how these things change your ride.
Key Takeaways
Learning about bike frame parts helps you choose a bike that fits you and how you ride. Frame shape and what it is made of change how your bike moves, feels, and works. Steep angles and short frames make you go faster and pedal harder. Slack angles and long frames help you feel comfy and steady. Taking care of parts like the bottom bracket keeps your bike working well. Road bikes are made for speed with light frames that cut through air. Mountain bikes are built for control and comfort with strong frames that absorb bumps.
Bike Frame Anatomy Basics
Anatomy of a Bike
When you look at a bicycle, you see more than just wheels and pedals. The bike frame anatomy forms the core structure that holds everything together. If you want to understand how your bike works, you need to know the main parts that make up the frame. A good bicycle anatomy guide helps you see how each part connects and supports your ride.
Here are the main components you will find in most bike frames:
The head tube holds the headset bearings and connects to the fork, letting you steer the bicycle.
The top tube links the top of the head tube to the seat tube. Its shape can be flat or sloped, which changes how easy it is to stand over the bike and how strong the frame feels.
The down tube runs from the head tube to the bottom bracket shell. It often carries cables for shifting gears.
The rear triangle includes the upper and lower forks, hook claw, and extra tubes. This part supports the rear wheel and helps keep the bike stable.
Frame geometry uses the lengths and angles of these tubes. It affects how you sit, how the bike handles, and how comfortable your ride feels.
You will also notice that the material and how the frame is made change its shape and strength. For example, aluminum frames use welded tubes, while carbon fiber frames use molded layers. Each method gives the frame different qualities.
Structural Role
Think of the bike frame as the structural backbone of the bicycle. It supports your weight and connects every part, from the wheels to the seat. The design and materials of the frame play a big role in how safe and strong your bike feels.
A well-designed bike frame keeps you safe and makes your ride smoother. It must handle bumps, turns, and the force from pedaling.
Here is a table showing how different features add to the durability and safety of your bike:
Aspect | Contribution to Durability and Safety |
|---|---|
Materials | Carbon fiber gives lightness and strength. Titanium adds durability and absorbs vibrations. |
Frame Geometry | The head tube angle changes how the bike steers. Chainstay length affects how fast and stable the bike feels. |
Integration & Assembly | Good welding and modern building methods make strong joints and allow for creative frame shapes. |
When you learn about bike frame anatomy, you gain the power to choose the right bike for your needs. You see how each part works together to create a safe, comfortable, and fun ride.
Key Bike Frame Parts
Head Tube
You find the head tube at the front of the bike frame. It holds the headset and connects the fork steerer tube to the frame. This part sets the steering axis, which controls how you turn the handlebars and direct the wheel. The angle of the head tube changes how the bike handles. A sharper angle gives you quick, twitchy steering. A slacker angle makes the bike more stable, especially at high speeds. Tapered head tubes use wider forks at the base, which increases stiffness and improves steering precision. Modern designs often include internal cable routing, which can change the head tube’s size and affect how the bike feels when you steer. Road bikes usually have steeper head tube angles for fast, responsive handling. Mountain bikes often use slacker angles for better control on rough terrain.
Tip: If you want precise steering, look for a bike frame with a tapered head tube and a geometry that matches your riding style.
Top Tube
The top tube runs from the top of the head tube to the seat tube. Its length and angle play a big role in how you sit on the bicycle and how comfortable you feel. Here’s how top tube design affects your ride:
Top tube length changes how far you reach to the handlebars, which affects your upper body weight and posture.
The right top tube length and seat tube angle set your center of gravity over the cranks.
This position decides how much weight your arms carry, which changes comfort.
Steeper seat tube angles push you forward, making you more aerodynamic. Racers like this setup.
Slacker angles let you sit upright, which feels more relaxed and reduces muscle stress.
Adjusting the top tube and seat tube angles helps balance comfort and performance.
Mountain bikes often use shorter top tubes for better control on trails. Road bikes may use longer top tubes for a stretched, aerodynamic position.
Down Tube
The down tube connects the head tube to the bottom bracket. This part supports the frame and helps transfer power from your legs to the drivetrain components. The down tube is usually the largest tube in the bike frame anatomy. A bigger diameter increases stiffness, which means less flex when you pedal hard. This stiffness helps you move forward efficiently and keeps the bike responsive. Manufacturers adjust the shape and thickness of the down tube to balance strength, weight, and aerodynamics. Road bikes often use larger down tubes for better power transfer. Mountain bikes may use thicker tubes for extra durability on rough trails.
Larger down tubes boost lateral stiffness, improving handling.
Stiff down tubes make sure your pedaling power goes straight to the wheel.
The down tube’s strength comes from its wall thickness, while stiffness depends on diameter.
Seat Tube
The seat tube runs from the bottom bracket up to the saddle. Its angle and length control where you sit and how you pedal. The seat tube angle sets the saddle’s position over the cranks, which affects pedaling efficiency and power transfer. A steeper angle moves the saddle forward, putting your pelvis over the pedals. This setup helps you pedal harder and faster. A slacker angle moves the saddle back, which feels more stable and comfortable, especially for technical riding or long descents. If the angle is too steep or too slack, you may feel cramped or stretched, which can cause knee pain or poor power output. Modern bikes use “effective” seat tube angles, which let you fine-tune your position for better fit and comfort.
Steeper seat tube angles improve pedaling efficiency.
Slacker angles boost stability and comfort.
Adjusting saddle position changes the effective seat tube angle and your riding fit.
Bottom Bracket
The bottom bracket sits at the junction of the down tube, seat tube, and chain stays. It connects the crankset to the bike frame and lets the crank arms spin smoothly. The bottom bracket plays a key role in transferring power from your legs to the drivetrain components. A stiff bottom bracket shell helps deliver more power to the wheel, especially during hard pedaling. If the bottom bracket is loose or worn, you lose energy to friction and may hear creaks or feel drag. Regular maintenance keeps the bottom bracket working well and improves power transfer. Upgrading to a high-quality bottom bracket can reduce friction and make your ride smoother.
The bottom bracket links the crankset to the frame and allows smooth rotation.
Friction, misalignment, or poor fit can waste energy and slow you down.
Noises and creaks signal problems that need fixing.
Clean and maintain the bottom bracket for better performance.
A stiffer bottom bracket shell helps you pedal more efficiently.
Chain Stays
Chain stays run from the bottom bracket to the rear dropouts. They form the lower part of the rear triangle and support the rear wheel. Chain stay length changes how the bike handles and feels. Longer chain stays make the wheelbase longer, which increases stability and helps with climbing traction. Shorter chain stays make the bike more nimble and easier to turn or lift the front wheel. Touring bikes use longer chain stays for stable, slow riding and to carry weight. Short chain stays help with quick acceleration and sharp turns but may reduce front wheel grip on steep climbs.
Longer chain stays boost stability and comfort.
Shorter chain stays improve responsiveness and make it easier to manual or wheelie.
Chain stay length affects weight distribution and handling.
Seat Stays
Seat stays connect the top of the seat tube to the rear dropouts, forming the upper part of the rear triangle. They support your weight and help absorb shocks and vibrations from the rear wheel. Seat stays work with chain stays to keep the frame stiff and strong. Modern seat stay designs use carbon fiber or special shapes to dampen road vibrations and improve comfort. Road bikes often use thin seat stays for a smoother ride. Mountain bikes may use thicker seat stays for extra strength.
Seat stays absorb road vibrations and shocks.
They support the rear triangle and help maintain frame stiffness.
Carbon fiber seat stays improve comfort by damping vibrations.

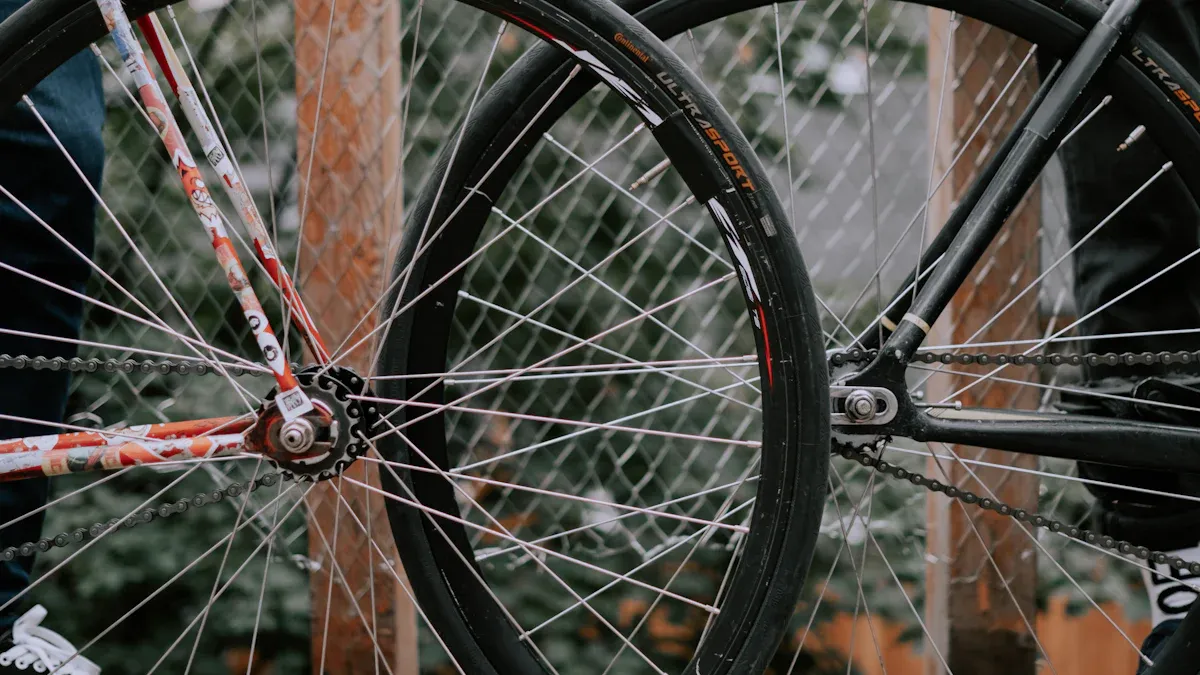

Dropouts
Dropouts are the slots at the ends of the chain stays and seat stays where the wheel axles sit. They hold the wheels in place and let you remove or install them. Dropout design affects wheel alignment and how easy it is to change wheels. Vertical dropouts make wheel changes quick and simple. Horizontal dropouts need more skill to align the wheel and adjust chain tension. Proper alignment keeps the wheel straight and prevents shifting problems or frame stress. Misaligned dropouts can cause crooked wheels and poor performance.
Note: Use a dropout alignment gauge to check and fix wheel alignment for safer and smoother rides.
Fork
The fork holds the front wheel and connects to the head tube. Fork material and geometry change how the bike feels and handles. Carbon fiber forks are light and absorb road vibrations, giving you a smooth ride. Aluminum forks are stiff and durable but can feel harsh. Titanium forks balance comfort and responsiveness. Fork geometry, like rake and length, affects steering precision and stability. Suspension forks absorb bumps and improve control on rough terrain but can slow steering response. Rigid forks give you precise handling but transmit more vibrations.
Feature | Aluminum Fork | Titanium Fork | |
|---|---|---|---|
Weight | Very lightweight, improves acceleration and climbing | Heavier than carbon but lighter than steel, moderate weight | Lightweight, similar to carbon but with added durability |
Stiffness | High stiffness-to-weight ratio, precise handling | Stiff but less compliant, can cause harsher ride | Moderate stiffness, balances comfort and responsiveness |
Ride Comfort | Excellent vibration damping, smooth ride | Less effective at vibration damping, harsher ride | Very comfortable, absorbs vibrations well |
Durability | Good but vulnerable to impact damage | Durable and resilient, less prone to sudden failure | Extremely durable, corrosion and fatigue resistant |
Cost | Expensive, high-end bikes | More affordable, common in mid-range bikes | Very expensive due to material and manufacturing complexity |
Advanced fork designs combine stiffness and compliance for both comfort and precise handling. Suspension forks change the head tube angle and improve control on rough trails. Rigid forks suit road bikes where steering precision matters most.
Parts of a Road Bike Frame vs. Mountain Bike Anatomy
Road Bike Frame Features
Road bike frames are built for speed and efficiency. Each part helps you go faster. The main parts are the head tube, top tube, down tube, seat tube, bottom bracket, chain stays, seat stays, dropouts, fork, and wheel. These parts work together to make the bike light and fast. The tubes are shaped to cut through air easily. Cables are hidden to reduce wind drag. The frame puts you in a low, stretched position. This helps you pedal hard and ride quickly. Carbon fiber and other light materials keep the frame stiff. This means your energy goes right to the wheel. Road bikes have advanced brakes and drivetrains. These help you ride smoothly and with less friction. There are different types of road bikes. Aero bikes, climbing bikes, and endurance bikes all use special frame features. These features balance speed, comfort, and power on smooth roads.
Tip: Pick a road bike frame with aerodynamic parts and a low position if you want to go fast on smooth roads.
Mountain Bike Frame Features
Mountain bike frames focus on control, comfort, and strength. Road bike frames do not work well on rough ground. Mountain bikes have a slacker head tube angle and a longer wheelbase. They also have a higher bottom bracket. These features help you stay steady and avoid hitting rocks with your pedals. The frame uses strong materials like aluminum, steel, or carbon fiber. These help absorb shocks and stop damage. Mountain bikes have space for wide tires. Bigger tires give you more grip and comfort. Suspension forks help you ride over bumps and keep the wheel on the ground. You can add water bottles, bags, and fenders to the frame. This makes the bike good for trails and long trips. Road bike frames do not have these features. Mountain bikes are better for off-road riding.
Note: A mountain bike frame with a suspension fork and wide tire space gives you more control and comfort on rough trails.
Geometry Differences
Frame geometry changes how you ride and feel on your bike. The table below shows the main differences between road and mountain bike geometry:
Frame Geometry Aspect | Road Bikes | Mountain Bikes |
|---|---|---|
Head Tube Angle | Steep angle for responsive handling | Slack angle (64°-68°) for stability on descents |
Bottom Bracket Height | Low for efficient power transfer | High to avoid pedal strikes on rough terrain |
Wheelbase Length | Shorter for quick, responsive handling | Longer for stability on uneven terrain |
Riding Position | Aggressive, lower front end for aerodynamics | More upright for better control on trails |
Frame Design | Prioritizes efficiency and aerodynamics | Robust and sturdy to absorb shocks and impacts |
Tire Clearance | Narrow to minimize air resistance | Wider to accommodate rough terrain tires |
Road bikes use steep head tube angles and short wheelbases. This makes them turn quickly. The frame puts you in a low position. This helps you go fast but may not feel comfy on long rides. Mountain bikes use slack head tube angles, high bottom brackets, and long wheelbases. These features help you stay steady and control the bike on rough ground. The upright position and wide handlebars help you see better and steer easier. Suspension forks and shock features help you ride over bumps and keep the wheel steady. Road bikes focus on speed. Mountain bikes give you control and comfort on trails.
Performance & Comfort
Material Choices
When you choose a bike frame, you need to think about the material. Each material changes how your bike feels, how much it weighs, and how long it lasts. The table below shows the most common materials and their properties:
Material | Strength | Weight | Durability | Ride Quality | Corrosion Resistance | Cost | Repairability |
|---|---|---|---|---|---|---|---|
Steel | Strong | Heavy | Very durable | Smooth, springy | Prone to corrosion | Affordable | Easy |
Aluminum | Strong | Light | Less durable | Stiff | Good | Moderate | Moderate |
Titanium | Strong, light | Light | Highly durable | Smooth | Excellent | Expensive | Difficult |
Carbon Fiber | Very strong | Very light | Can be brittle | Responsive, smooth | Excellent | Expensive | Difficult |
Steel frames give you a smooth ride and are easy to fix. Aluminum frames feel stiff and light, but they can wear out faster. Titanium frames last a long time and resist rust, but they cost more. Carbon fiber frames are very light and strong, but they can break from a hard shock and are hard to repair. You should pick a frame material that matches your riding style and budget.
Weight Distribution
Frame geometry sets how your weight sits between the front and rear wheel. This balance changes how your bike handles and how comfortable you feel. Steeper seat tube angles move your weight forward, which helps you pedal harder. Slacker angles shift your weight back, making long rides easier on your wrists and back. Chainstay length also matters. Short chainstays make your bike quick and easy to turn. Long chainstays help you stay stable at high speeds and when you carry gear.
Steeper seat tube angles improve pedaling but add pressure to your wrists.
Slacker angles give you comfort but may slow you down on climbs.
Long chainstays keep your bike steady.
If you ride on rough trails, you want a frame that keeps your weight balanced for better control. Mountain bikes often use wider tires and special geometry to help with shock absorption and keep both wheels on the ground.
Handling & Fit
Handling depends on frame design, wheelbase, and steering geometry. A longer wheelbase makes your bike stable, while a shorter wheelbase gives you quick turns. The head tube angle and fork rake change how your bike responds to steering. If you want a bike that feels safe on descents, look for slack head angles and longer wheelbases. For fast, sharp turns, choose a frame with a steep head angle and short wheelbase.
Fit is just as important as handling. You need the right stack and reach to match your body size. Professional bike fitters measure your saddle height, handlebar reach, and pedal position. They adjust these parts so you get the best power and comfort. A good fit helps you avoid pain and makes your ride more fun. If you ride on rough ground, wider handlebars and upright posture help you control the bike and keep both wheels steady after a shock.
Tip: Always test your bike fit before you buy. A good fit improves comfort, handling, and safety.
Understanding bike frame anatomy helps you make smart choices and enjoy every ride. Each part, from the fork to the wheel, shapes comfort and performance. Experts show that matching your body and riding style to the frame improves satisfaction. You can follow these steps:
Test ride different frames and check wheel fit.
Review geometry and wheel placement for your style.
Remember, a well-chosen frame keeps your wheel steady and your ride smooth.
FAQ
What bike frame material should you choose for everyday riding?
Steel gives you a smooth ride and lasts a long time. Aluminum feels light and stiff. Carbon fiber is very light but costs more. Titanium offers comfort and durability. Pick a material that matches your budget and riding style.
How does frame geometry affect your comfort?
Frame geometry changes how you sit and pedal. A longer top tube stretches your position. A shorter top tube lets you sit upright. Steeper angles help you pedal harder. Slacker angles give you more comfort on long rides.
Can you adjust your bike frame for a better fit?
You can change saddle height, handlebar reach, and stem length. These adjustments help you find a comfortable position. A good fit reduces pain and improves control. Always test your bike fit before you ride.
Why do mountain bikes have slacker head tube angles?
Slacker head tube angles make your bike more stable on rough trails. You get better control when you ride downhill. This design helps you handle bumps and turns with confidence.
What is the role of the bottom bracket in your bike’s performance?
The bottom bracket lets your crank arms spin smoothly. A stiff bottom bracket helps you transfer power to the wheels. If you keep it clean and tight, you get better performance and fewer problems.
