When you look at a fat bike frame and a mountain bike frame, you notice clear differences right away. A fat bike frame stands out with its extra width and huge tire clearance. This design lets you ride a fat tire bike over snow or sand without sinking. In contrast, a mountain bike frame feels slimmer and handles rocky, uneven trails for mountain biking. You need to choose your frame based on where you plan to ride. The right choice makes mountain biking or riding a fat bike more fun and safe.
Key Takeaways
Fat bike frames are wider to fit big tires that help you ride on snow, sand, and mud without sinking.
Mountain bike frames are slimmer and lighter, designed for fast, agile riding on rocky and hard trails.
Fat bike tires run at low pressure to absorb bumps naturally, giving a smooth ride on soft ground.
Mountain bikes use mechanical suspension to handle rough, technical trails with better control.
Choose a fat bike for soft, loose terrain and comfort; pick a mountain bike for speed and agility on hard trails.
Frame Design
Fat Bike Frame Width
When you look at a fat bike frame, you see that it is much wider than a mountain bike frame. This extra width is not just for looks. The wide design lets you fit wide tires, which are usually 4 to 5 inches across. These wide tires help you ride on snow, sand, or mud without sinking.
Tip: The wide frame also means you get more stability when riding on soft ground.
You can see the difference in the measurements below:
Frame Part | Fat Bike Width (mm) | Mountain Bike Width (mm) |
|---|---|---|
Hub Width | 170 – 190 | ~142 |
Rear Dropout | 197 x 12 (common for fat) | Older standards narrower |
Bottom Bracket Width | ~100 | 68 or 73 |
Fork, Seat Stay, Chain Stay | Extra wide to fit 4-5 inch tires | Narrower to fit 45-63.5 mm tires |
The fat bike frame uses a wider hub and bottom bracket. The bottom bracket shell on a fat bike can be 100 to 132 mm wide. This is much wider than the 68 or 73 mm you find on most mountain bikes. The wider bottom bracket gives space for the crankarms and the wide tires.

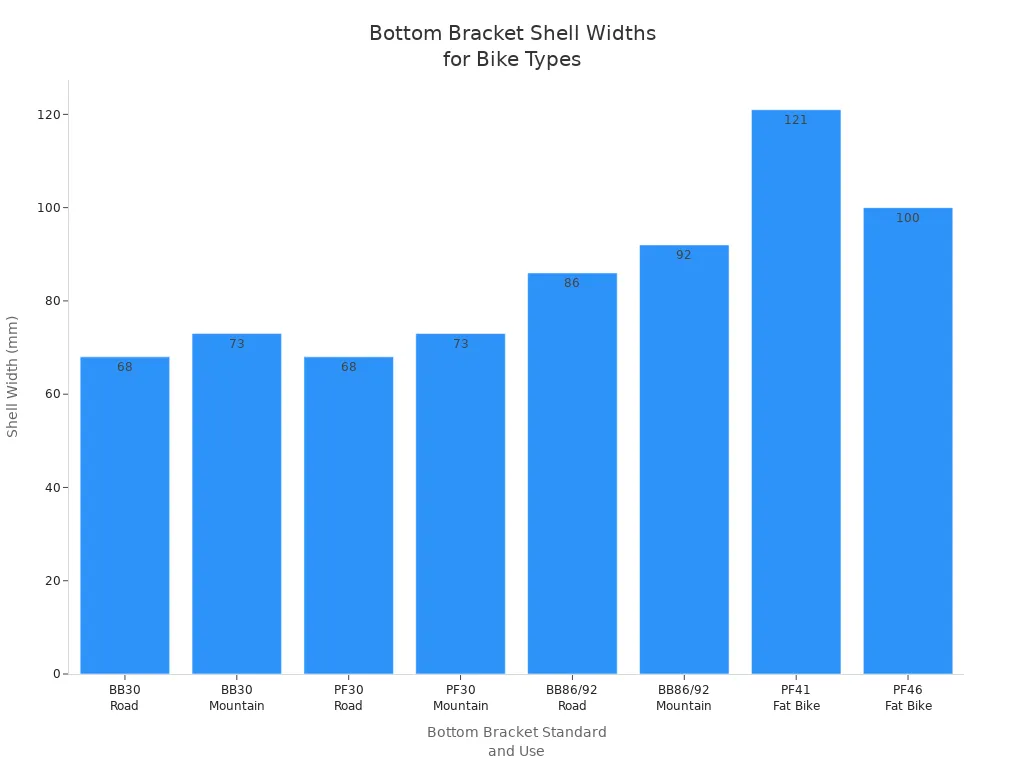

Here is a chart that shows how much wider the bottom bracket shell is on a fat bike compared to a mountain bike:
Fat bike frames also use special hub spacing. You might see 170 mm or even 190 mm rear hub spacing. This extra space lets you use the wide tires and keeps the chain from rubbing. The frame also has larger forks, seat stays, and chain stays. These parts must be strong to handle the extra stress from the wide tires and rough terrain. Fat bike components, like the crankset and wheels, are also built wider and stronger to match the frame.
Mountain Bike Frame Geometry
A mountain bike frame has a different design. It is slimmer and lighter. The frame fits tires that are about 45 to 63.5 mm wide. This makes the bike easier to handle on rocky trails and steep hills.
The geometry of a mountain bike frame helps you move quickly and turn fast. The head tube angle is steeper, and the wheelbase is shorter. This makes the bike more agile and responsive. You can dodge rocks and roots with ease.
Here are some key differences in geometry:
Fat bikes have a slacker head tube angle and a longer wheelbase. This gives you more stability and comfort on soft or rough ground.
Mountain bikes have a steeper head tube angle and a shorter wheelbase. This helps you steer quickly and handle technical trails.
The design of each frame matches its purpose. Fat bike design focuses on stability and support for wide tires. Mountain bike design focuses on speed and control on hard-packed trails.
Tire Fit
Fat Bike Tires
When you look at fat bike tires, you see extra-wide tires that stand out right away. These tires usually measure between 3.8 and 5 inches across. You need a fat bike frame with wide forks and seat stays to fit these massive tires. The rims for fat bikes are also much wider than those on mountain bikes. Most fat bike rims have an internal width of 40 to 50 millimeters or more. This wide rim supports the fat tire and keeps it stable.
Rim Internal Width (mm) | Typical Tire Width Range (inches) | Bike Type |
|---|---|---|
40 – 50+ | 2.8 – 3.1+ | Fat Bike |
Fat bike tires run at very low pressures, usually between 5 and 15 PSI. This low pressure lets the tire spread out and grip soft terrain like snow, sand, or mud. You get unmatched traction and stability because the wide tires create a large contact patch. The frame design allows you to ride a fat tire bike over surfaces where regular bikes would sink.
Note: Fat bike frames use wider hubs, forks, and bottom brackets to handle the extra-wide tires. This design gives you better flotation and keeps you moving on soft terrain.
You can see how fat bike tires help you float over soft ground:
Fat bike tires are 4 inches or wider.
The wide tires spread your weight over a larger area.
Low tire pressure lets the tire mold to uneven surfaces.
You stay stable and avoid sinking in snow or sand.
Mountain Bike Tires
Mountain bike tires look much slimmer compared to fat bike tires. Most mountain bike tires measure between 1.9 and 2.6 inches wide, though some newer models can fit tires up to 3 inches. The rims for mountain bikes are also narrower, usually between 19 and 33 millimeters in internal width.
Rim Internal Width (mm) | Typical Tire Width Range (inches) | Bike Type |
|---|---|---|
19 – 33 | 1.9 – 3.1 (including plus sizes) | Mountain Bike |
Mountain bike frames do not have the same fork clearance as fat bikes. You get enough space for regular mountain bike tires, but not for extra-wide tires. The frame and fork limit the maximum tire width you can use. Most mountain bike tires run at higher pressures, usually between 20 and 35 PSI. This gives you agility and low rolling resistance on hard-packed trails.
Tip: Mountain bike tires work best on rocky trails and steep hills. You get quick handling and speed, but less flotation on soft terrain.
Here is a quick comparison of tire width and traction between fat bikes and mountain bikes:
Feature | Fat Tire Bike | Standard Mountain Bike |
|---|---|---|
Typical Width | 2.2″ – 2.6″ | |
Typical PSI | 5 – 15 PSI | 20 – 35 PSI |
Primary Advantage | Maximum Grip & Float | Agility & Low Rolling Resistance |
You need to think about tire width and traction when choosing your bike. Fat tire bikes give you flotation and stability on soft terrain. Mountain bikes give you speed and control on hard trails. The frame design and rim width decide what tires you can use and where you can ride.
Suspension
Natural Suspension of Fat Bike Tires
You experience a unique kind of comfort when you ride a fat bike. The wide tires, filled with low air pressure, act as a natural suspension system. These tires absorb bumps and vibrations from rough terrain, so you feel less shock in your hands and legs. Fat bike suspension comes from the tire itself, not from mechanical parts. The large volume of air inside the tire cushions you against rocks, roots, and uneven ground. You notice a smooth, cushioned ride, especially on soft surfaces like snow or sand. This natural shock absorption reduces fatigue, even after long rides on bumpy trails.
Tip: Lower tire pressure increases comfort and grip, but you should avoid going too low to prevent pinch flats.
Here is a table that shows how fat bike tires compare to standard tires:
Feature | Fat Tires | Standard Tires |
|---|---|---|
Tire Width | Very wide (3.8 to 5 inches) | Narrow (1.5 to 2.5 inches) |
Air Pressure | Low (5-15 PSI) | High (80-130 PSI) |
Shock Absorption | High due to natural suspension | Low to moderate |
Ride Comfort | Very smooth | Moderate |
Rider Fatigue | Reduced on rough terrain | Higher on uneven trails |
You get a very smooth ride with fat bike suspension, especially on loose or rough surfaces. The tires do most of the work, so you do not need extra suspension parts.
Traditional Suspension on Mountain Bikes
Mountain bike suspension works differently. You rely on mechanical systems like front forks and rear shocks. These parts absorb big hits and keep your wheels on the ground. You feel more connected to the trail, which helps you control your bike on rocky paths and steep hills. Mountain bike suspension gives you a firmer, more responsive ride. You can move quickly and steer with precision.
You notice that mountain bike suspension excels on hard-packed trails and technical terrain. The system absorbs large impacts, but the ride may feel less cushioned than a fat bike on very rough or loose surfaces. You get agility and speed, but you may feel more bumps on soft ground.
Mountain bike suspension uses springs and dampers.
You adjust the suspension for your weight and riding style.
You get better control on jumps and drops.
Both systems have strengths. Fat bike suspension gives you comfort and reduces fatigue on rough terrain. Mountain bike suspension provides control and speed on technical trails.
Weight
Fat Bike Frame Weight
When you pick up a fat bike, you notice the extra weight right away. Fat bike frames need to be wider and stronger to support the large tires and rough terrain. This extra material adds pounds to the frame. Most fat bike frames weigh between 5 and 7 pounds. Some models, like the Wyatt Maverick, have a frame weight of about 6 pounds. The complete bike, with all its parts, can weigh around 32 pounds with a rigid fork or up to 37 pounds if you add a suspension fork.
Bike Model | Frame Weight (lbs) | Complete Bike Weight (lbs) |
|---|---|---|
Wyatt Maverick | ~6 (with sliders) | ~32 (Rigid fork) / ~37 (Suspension fork) |
Framed Minnesota Fat | N/A | ~34.25 (average 18″ frame) |
Note: The wide frame and heavy-duty parts help you ride on snow, sand, and mud. You get more stability, but you also have to work a bit harder to move the bike.
You may feel the extra weight when you climb hills or carry your bike. The design focuses on strength and support, not on keeping things light.
Mountain Bike Frame Weight
Mountain bike frames usually weigh less than fat bike frames. Most mountain bike frames weigh between 3 and 5 pounds. The complete bike often weighs between 25 and 30 pounds, depending on the materials and components. You get a lighter ride, which helps you move faster and handle the bike with ease.
Lighter frames make it easier for you to climb steep trails and accelerate quickly. You can lift the bike over obstacles or carry it up stairs without much trouble. The lighter weight also means you use less energy on long rides.
Mountain bike frames use less material because they do not need to fit extra-wide tires.
You get a balance of strength and lightness, perfect for rocky trails and fast descents.
If you want a bike that feels nimble and quick, a mountain bike frame gives you that advantage. You sacrifice some stability on soft ground, but you gain speed and agility on hard-packed trails.
Terrain
Fat Bike on Soft Surfaces
You notice the difference when you ride a fat tire bike on challenging terrain. The wide fat tire design lets you float over soft terrain like snow, sand, and mud. The large contact patch from the fat tire gives you excellent grip and stability. You do not sink or lose control, even when the ground feels loose or unstable.
Fat tire bikes use low air pressure in their tires. This helps you ride over obstacles that would stop a regular mountain bike. The wide frame and fork keep mud, snow, and debris from rubbing against the tires. You can explore beaches, snowy trails, and muddy paths with confidence. The fat tire bike acts like a 4×4 vehicle, built for the most challenging terrain.
Tip: If you want to ride where other bikes cannot go, choose a fat tire bike for the best performance on soft terrain.
You may find fat tire bikes less efficient on paved roads or smooth trails. The design focuses on stability and control in extreme conditions, not on speed.
Mountain Bike on Trails
You experience a different ride when you take a mountain bike onto trails. Mountain biking covers many types of challenging terrain, from rocky paths to forest trails. The mountain bike frame gives you agility and control. You can handle quick turns, steep climbs, and fast descents.
Mountain bikes come in several styles for different trails. You might ride cross country, trail, enduro, or downhill. Each type uses a special frame and suspension to match the trail. For example:
Trail bikes handle a mix of climbs and descents.
Enduro bikes focus on rough, technical trails.
Downhill bikes give you control on steep, fast descents.
Frame materials also matter. Aluminum frames give you strength and a stiff ride. Carbon fiber frames feel lighter and absorb more bumps. Full suspension frames help you stay in control on rough ground, while hardtails work well on smoother trails.
Mountain biking lets you explore many types of challenging terrain. The mountain bike frame helps you move quickly and stay safe, no matter the trail.
Pros and Cons
Fat Bike Frame Advantages
You get several benefits when you choose a fat bike frame. Riders and experts often mention these key points:
Fat bike frames handle tough terrain well. Steel or aluminum frames absorb shocks and keep you comfortable.
Fat tires give you a large surface area for grip. You stay stable on snow, sand, mud, and even wet rocks.
You can run fat tires at low pressures. This makes your ride smoother and helps with shock absorption.
Fat bikes work well in many conditions. You can ride in winter, on beaches, or through muddy trails.
Some fat bike frames are both lightweight and strong. You get durability without too much extra weight.
Many fat bikes come with hydraulic disc brakes and front suspension forks. These features add control and comfort.
Riding a fat bike can improve your skills. The heavier frame and tires make you work harder, which builds strength and balance.
The fat bike gear range is wide, so you can tackle steep hills and soft ground with ease.
Mountain Bike Frame Advantages
Mountain bike features give you a different set of strengths:
Mountain bike frames feel lighter and more agile. You can move quickly and turn fast on rocky trails.
The mountain bike gear range helps you climb steep hills and speed down descents.
You get strong wheels and effective brakes. These help you stay safe on rough terrain.
Suspension systems on mountain bikes absorb big bumps. You feel more in control on technical trails.
Mountain bikes work well for many types of riding, from cross-country to downhill.
Limitations
You should know the limits of each frame type. The table below shows some common issues:
Aspect | Fat Bike Frames | Mountain Bike Frames |
|---|---|---|
Weight Support | Up to 300 pounds (136 kg) | |
Tires | Oversized, stable, but heavier and slower | Large, grippy, but not for softest terrain |
Frame Materials | Steel or aluminum for strength | Steel or aluminum for strength |
Frame Limitations | Heavier weight slows you down; must handle impacts | Must handle impacts; safety margin drops with more weight |
Wheels | Need strong wheels with at least 24 spokes | Strong wheels needed; smaller wheels are stronger |
Tire Pressure | Low pressure for comfort; risk of pinch flats | Higher pressure needed; risk of damage |
Brakes | Need strong brakes for heavy frame | Effective brakes needed |
Suspension | Must be high quality and serviced often | Suspension for rough terrain |
Note: Fat bike frames tend to be heavier and cost more. Mountain bike frames may not perform well on snow or sand.
Choosing a Frame
Terrain Considerations
You need to think about where you plan to ride before picking a bike frame. Terrain plays a big role in your decision. If you want to explore snowy paths, sandy beaches, or muddy trails, a fat bike gives you the best traction and stability. The wide tires help you float over soft ground and keep you moving when other bikes get stuck. You can ride through snow and sand with confidence.
Mountain biking often takes place on hard-packed trails, rocky paths, and forest tracks. Mountain bike frames work better on these surfaces. You get a lighter bike that climbs hills easily and handles quick turns. Hardtail mountain bikes, with front suspension only, perform well on smooth to moderately rough trails. You can improve your technical skills and enjoy fast descents.
Terrain Type | Fat Bike Frame | Mountain Bike Frame |
|---|---|---|
Snow/Sand/Mud | Excellent traction | Struggles to stay upright |
Rocky/Hard-packed | Less efficient | Agile and responsive |
Mixed Terrain | Versatile, but slower | Fast and precise |
Tip: Choose a fat bike if you want to ride on soft, loose surfaces. Pick a mountain bike for speed and control on technical trails.
Riding Style
Your riding style matters when choosing between a fat bike and a mountain bike. If you enjoy a laid-back pace and want comfort on rough terrain, a fat bike suits you well. The cushioned ride helps you tackle loose ground and keeps you stable. You can go bikepacking or explore off-road areas without worry.
Mountain biking attracts riders who love speed, climbing, and technical challenges. Hardtail mountain bikes are lighter and faster. You get precise handling and better climbing efficiency. These bikes work best for trail enthusiasts and those who want to improve their skills.
Consider these points:
Fat bikes offer unmatched comfort and traction for off-road adventures.
Mountain bikes provide speed, agility, and control for technical riding.
Fat bikes feel heavier and slower on smooth trails.
Mountain bikes struggle on snow and sand but excel on rocky terrain.
Note: Think about your favorite riding spots and how you like to ride. The right frame makes your experience safer and more enjoyable.
Fat bike frames give you extra width and stability for soft terrain like snow or sand, but they weigh more and move slower on hard trails. Mountain bike frames feel lighter and more agile, making them better for rocky paths and quick turns.
Frame Aspect | Fat Bike Frame | Mountain Bike Frame |
|---|---|---|
Snow, sand, mud | Trails, rocks, forests | |
Ride Feel | Stable, smooth | Fast, responsive |
Tip: Match your frame to your favorite terrain and riding style. Test different sizes and adjust components for the best fit and comfort.
FAQ
What makes a fat bike frame different from a mountain bike frame?
You see a fat bike frame with extra width and more tire clearance. This design lets you use wider tires for soft ground. A mountain bike frame feels slimmer and works best on rocky or hard-packed trails.
Can you put fat tires on a regular mountain bike frame?
You cannot fit fat tires on most mountain bike frames. The frame and fork do not have enough space for wide tires. Only fat bike frames support tires that are 4 inches or wider.
Which bike frame is better for snow or sand?
You get better performance on snow or sand with a fat bike frame. The wide tires spread your weight and help you float over soft surfaces. Mountain bike frames struggle in these conditions.
Are fat bike frames heavier than mountain bike frames?
Yes, fat bike frames weigh more. The extra width and strong materials add weight. You may notice this when climbing hills or carrying your bike.
Do you need suspension on a fat bike?
You do not always need suspension on a fat bike. The wide, low-pressure tires act as natural shock absorbers. You feel a smooth ride even without extra suspension parts.
