If you want to use a belt drive on your bike, you need a belt bike frame with a split rear triangle. This split lets you install the belt, which is one solid loop, unlike a chain that you can break and reattach. Not every bicycle frame with a split is belt drive ready, though. You also have to check for proper tensioning and alignment. Riders love belt drives because they run almost silently, stay clean, and last much longer than chains. You might notice less maintenance, no greasy mess, and great performance in wet or muddy conditions. Chain vs belt is a big debate, but many bicycle commuters prefer belts for their durability and low upkeep.
Key Takeaways
A bike frame needs a split rear triangle for a belt drive. The belt is one solid loop and cannot be opened like a chain.
The belt must be tight and straight to work well. Adjustable dropouts or an eccentric bottom bracket help keep the belt tight and smooth.
Pick a frame made for belt drives to avoid hard and risky changes. These changes can make your bike weak or cause trouble.
Good belt drive frames use steel, aluminum, or carbon. These materials give comfort, strength, and good performance for a longer ride.
Using a belt drive ready frame saves time, money, and stress. It also gives you a quiet, clean, and easy bike ride.
Belt Drive Frame Features
When you want to switch to a belt drive, you need to look at a few key features on your bike frame. Not every frame works, even if it looks similar. Let’s break down what you should check before you get started.
Split Rear Triangle
The split rear triangle is the most important part of any belt bike frame. You can’t install a belt without it because the belt is a solid loop. The split usually sits on the seatstay or near the dropout. You’ll see a screw or bolt holding the frame together at this point. This screw keeps the frame strong and safe. If you ever need to repair the screw hole, you might need a special screw, not just any hardware store bolt. This keeps the frame tight and the belt secure.
Tip: Always check that the split is solid and the fastening system is in good shape. A loose or worn screw can make your ride unsafe.
For full suspension bikes, things get trickier. The frame must keep the belt at the right tension, even when the suspension moves. Some bikes use special designs like high-pivot suspensions or tensioner pulleys to keep the belt tight. If the frame flexes too much or the split isn’t strong, you’ll have problems with belt alignment and tension.
Here’s what you need for a proper split rear triangle:
A clear split or break in the rear triangle for the belt to pass through.
A fastening system (usually a screw) that holds the frame together tightly.
A frame built to handle the tension of a belt drivetrain, not just a chain.
Dropouts for Belt Tension

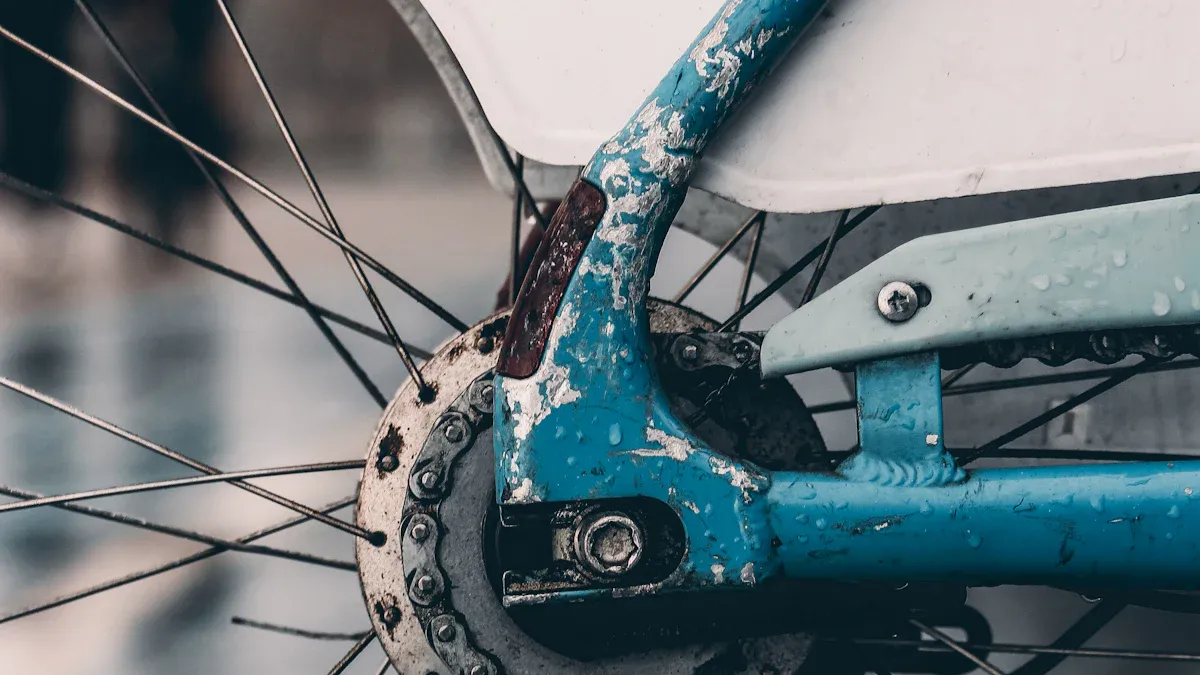

Dropouts are where your rear wheel attaches to the frame. For belt drive frames, the dropout design matters a lot. You need to keep the belt tight, but not too tight. If the belt is loose, it slips. If it’s too tight, it wears out fast and can even damage your bike.
Some frames use an eccentric bottom bracket (EBB). This lets you adjust belt tension with a single bolt. It’s easy to fine-tune and keeps everything lined up. EBBs also make the frame stiffer, which helps with power transfer and durability. Other frames use slider or adjustable dropouts. These need more bolts and can be harder to adjust. They sometimes mess with your wheel alignment, which can cause belt noise or slippage.
Here’s a quick comparison:
Dropout Design | Key Features Supporting Belt Tensioning |
|---|---|
Eccentric Bottom Bracket (EBB) | Easy, single-bolt tension adjustment; keeps wheel and rotor aligned; stiffer for better power transfer and durability. |
Slider/Adjustable Dropouts | Multiple bolts needed; harder to adjust; can affect wheel alignment; less stiff, which may reduce power transfer and durability. |
Some modern dropouts, like Olsen Bicycles’ RocknRollout, let you remove the rear wheel without messing up the belt tension or brakes. This makes maintenance much easier and keeps the belt running smoothly. A stiff frame and wide bottom bracket shell also help prevent flex, which can cause the belt to slip or make noise.
Note: Proper alignment is just as important as tension. If the belt isn’t straight, you’ll hear noise, see fraying, or even have the belt jump off. Always check alignment after adjusting tension.
Frame Material
The material of your bicycle frame changes how your belt drive feels and lasts. Steel frames give you a smooth ride and keep the belt tension steady. They soak up bumps and help the belt drivetrain stay aligned. Aluminum frames are light and strong. Many premium cargo bikes use aluminum because it lasts a long time and doesn’t rust. Carbon frames are even lighter and can make your bike feel super responsive. Some bikes use carbon forks with steel frames for the best mix of comfort and strength.
Steel frames balance comfort and stiffness, helping your belt drivetrain last longer.
Aluminum frames are light, stable, and resist rust, making them great for daily use.
Carbon frames and rims cut weight and boost high performance, but they cost more.
A high-quality belt bike frame made from good materials will last longer—sometimes 7 to 10 years or more. Cheaper frames might only last 3 to 5 years. Premium frames also keep your ride stable, even when you carry heavy loads or ride on rough roads. This stability helps your belt drive work better and last longer.
Remember: Not every frame with a split is truly belt drive ready. Always look for frames marketed as belt drive frames or belt drive compatible. These frames are designed for the right tension, alignment, and durability. If you want high performance and belt drive efficiency, start with the right frame.
Checking Belt Bike Frame Compatibility
Visual Inspection
You want to make sure your belt bike frame can handle a belt drive before you start swapping parts. A quick visual check helps you spot the most important features. Grab your bike and look for these things:
Split rear triangle: Find a clear break in the rear triangle. This split lets you fit the belt onto your bicycle. If you don’t see a split, you can’t install a belt drive.
Dropouts: Check the dropouts near the rear wheel. Look for adjustable or sliding dropouts, or an eccentric bottom bracket. These help you set the right tension for your belt drivetrain.
Alignment: Sight down the frame from the rear. The path for the belt should be straight. If the pulleys or sprockets look crooked, you might have alignment problems. Misalignment causes noise, uneven wear, and can make your belt jump off.
Here’s a simple checklist you can use:
Inspection Point | What to Look For | Why It Matters |
|---|---|---|
Split Rear Triangle | Visible break with secure fastener | Allows belt installation |
Dropouts | Adjustable, sliding, or eccentric design | Lets you set belt tension |
Alignment | Straight path for belt and pulleys | Prevents noise and premature wear |
Tip: Use a straightedge or even a laser alignment tool if you want to be extra sure your belt lines up perfectly. Misalignment can lead to high tracking forces, uneven wear, and annoying noises.
Manufacturer Specs
Don’t just trust your eyes. Always check the specs from the manufacturer before you buy or upgrade your belt bike frame. Some frames look ready for a belt drive but miss key features. Manufacturers often list important details that show true belt drive compatibility.
Look for these specs:
The frame uses Alternator 1.0 Flat Mount dropouts. These dropouts give you drivetrain versatility and work with Gates Belt Drive systems.
The frame supports a 1x crankset with a maximum 46-tooth Gates Belt Drive sprocket.
The Alternator dropout system lets you adjust wheelbase and axle spacing. This means you can set up different drivetrains, including belt drive.
The frame is tested and certified for belt drive use. This means the maker stands behind its belt drive compatibility.
Frames labeled “belt drive ready” or “belt drive frames” are your best bet. These frames have been designed and tested for belt drivetrain setups. You get peace of mind knowing your bicycle will work well with a belt and won’t need risky modifications.
Note: If you can’t find these specs, reach out to the manufacturer or your local bike shop. Ask if the frame is truly built for a belt drive. It’s better to double-check than to waste time and money.
Frame Types
Not every bike frame works with a belt drive. Most standard frames don’t have the split rear triangle you need. Trying to cut or modify a regular frame is risky and can ruin your bicycle. You want a belt bike frame that’s built for the job.
Most common frame types are not compatible with belt drives. You need a frame designed for belt drive systems. Some older mountain bikes from the 1990s have elevated chainstays. These rare frames can sometimes work with a belt drive if you use an eccentric bottom bracket for tensioning. Specially designed frames, like those from Spot Coyote, are made for belt drives and work well.
Here’s a quick guide:
Frame Type | Belt Drive Compatible? | Notes |
|---|---|---|
Standard Road/Cross Frame | ❌ | No split, not designed for belt installation |
Standard Mountain Frame | ❌ | Needs major modification, not recommended |
Vintage Elevated Chainstay Frame | ⚠️ | Sometimes works with extra tensioning hardware |
Purpose-Built Belt Bike Frame | ✅ | Designed for belt drive, best choice |
Spot Coyote, Similar Models | ✅ | Built for belt drivetrain, easy installation |
🚲 If you want a smooth, quiet, and long-lasting belt drivetrain, start with a frame made for belt drive. You’ll save yourself headaches and enjoy your bicycle more.
Choosing a Belt Bike Frame
Key Features
When you pick a belt compatible frame, look for features that help your ride. The frame must have a split in the rear triangle. This split lets you put on the belt, which is one solid loop. The frame also needs to handle belt tension well. If the frame bends, you might hear popping or feel problems with the drivetrain. Some frames use wider bottom bracket shells and chainstays to make them stiffer. For full suspension bikes, find designs that keep the belt tight when the suspension moves. High-pivot suspensions, tensioner pulleys, and concentric swingarm pivots help with this. Make sure there is enough space for the chainring and tires. You want dropouts that let you take off the rear wheel without messing up belt tension or brake alignment. These features help your belt drive work well and make maintenance easier.
🚲 Tip: Pick a frame that is sold as belt drive compatible. You will not need risky changes and your belt drivetrain will work better.
Budget and Brands
Belt drive frames usually cost more than chain drive frames. The frame needs a special design so the belt can go through the rear triangle. You also pay more for gearing options like internally geared hubs. Chain drive frames are cheaper and easier to fix. Belt drive bikes often use mid-drive motors, which makes them cost more. Even though you pay more at first, you save money later because the belt lasts longer and needs less care. If you want high performance and less trouble, the extra cost can be worth it.
Some brands are known for good belt drive frames. Spot Bikes, Raleigh, and Marin make strong frames for city riding. Civia and REI also have frames that work well with belt drives. These brands use features like horizontal dropouts and eccentric bottom brackets to keep your belt tight.
Popular Belt Drive Frames
There are many popular models if you want a belt compatible frame. The Booda Bike has a steel frame set ready for belt drive and gear hub setups. It comes with an eccentric bottom bracket and a carbon fork. Here is a quick look at some top models:
Manufacturer / Brand | Model / Series | Notes / Price Range (approx.) |
|---|---|---|
Cube | Travel SL Touring Bike | From €1199 |
Kalkhoff | Endeavour 8 Touring Bike | From €999 |
Salsa | Fargo OffRoad Touring Frameset | US $899 – Titanium/Carbon US $2499 |
Spot Bikes | Spot Acme | Gates Carbon Belt Drive, urban use |
Raleigh | Redux 2 | Upright city ride, belt drive system |
Marin | Presidio 3 | Durable, comfortable belt drive frame |
You can also look at bikes from Gudereit, Koga, and VSF Fahrradmanufaktur. These bikes have strong frames, good belt alignment, and work well for city or touring rides.
Upgrading to Belt Drive
Modifications
Thinking about turning your regular bike into one that uses a belt? You might want to pause before grabbing your tools. Modifying a standard frame for a belt is a tough job. Here’s why:
You have to cut the frame to create a split in the rear triangle. This step lets you fit the belt through, but it means cutting and welding metal. That can damage the paint and even weaken the frame.
After cutting, the frame might flex more. Extra flex can make the belt slip or pop off, which ruins your ride.
Getting the belt to line up perfectly is tricky. Even a small misalignment, like 2mm, can cause noise or make the belt slip. Some people try to use adapters, but these often make things worse.
You need a way to keep the belt tight. Most standard frames don’t have adjustable dropouts or an eccentric bottom bracket. If you try to add these, you might run into problems, especially if your bike has a mid-drive motor.
The whole process costs a lot. You might spend $150 to $500 just to split and refinish the frame. Many riders start this project and give up because of all the problems.
⚠️ Modifying a standard frame for a belt is complex, expensive, and often leads to disappointment.
When to Avoid
Sometimes, upgrading just isn’t worth it. Here are some reasons to skip the project:
Not every bike frame works with a belt. Most standard frames don’t have the right split or space for the belt.
The cost of a belt and replacement parts is higher than for a chain. You might also have trouble finding new belts or pulleys if you need them.
Belt systems have strict rules for chain stay length and gearing. You can’t swap parts as easily as with a chain.
If you want a clean look and smooth ride, a purpose-built frame is the way to go. These frames have the split, the right tensioning system, and better alignment. They also work better with electric motors and batteries.
🚲 If you want a reliable, quiet, and low-maintenance ride, start with a frame made for a belt. You’ll save time, money, and avoid a lot of headaches.
Common Mistakes
When you want to switch to a belt, it’s easy to make mistakes. Many riders get excited about the upgrade but miss some important details. Let’s look at the two most common errors people make when trying to set up a belt on their bike.
Missing the Split
You need a split in the rear triangle to install a belt. This split is not just a small detail—it’s the only way to get the belt onto your frame. Most chain bikes do not have this feature. Riders often forget to check for it. They buy a new belt, get all the parts, and then realize there’s no way to fit the belt through the frame. Without the split, you would have to cut the frame, which is unsafe and can ruin your bike.
🚩 Always check for a split or gate in the rear triangle before you buy a belt or start your project.
Here are some things people often overlook:
The belt is a solid loop. You cannot break it like a chain.
Most standard frames do not have a split, so you cannot install the belt.
Trying to add a split later means cutting and welding, which weakens the frame.
Many riders only notice this problem after buying all the belt parts.
Wrong Dropouts
Dropouts hold your rear wheel in place. For a belt, you need special dropouts that let you adjust tension. If you use the wrong type, you cannot keep the belt tight. This leads to slipping, noise, or even the belt coming off during a ride. Some frames use slider or adjustable dropouts. Others use an eccentric bottom bracket. Both help you set the right tension for the belt.
Common mistakes with dropouts include:
Picking a frame with fixed dropouts that do not move.
Forgetting that a belt needs more precise tension than a chain.
Ignoring frame stiffness. If the frame flexes, the belt may wander off the cog.
Not checking if the frame supports tensioning systems for the belt.
🛠️ Tip: Always choose a frame designed for a belt. Look for adjustable dropouts or an eccentric bottom bracket. This makes your ride smoother and keeps the belt in place.
If you avoid these mistakes, you will have a much easier time setting up your belt. You will also enjoy a quieter, cleaner, and longer-lasting ride.
When you pick a new frame, always make sure it is truly built for a belt. Just having a split is not enough. Check that the frame can handle the tension and keeps the belt straight. Ask questions and look at the specs before you buy. If you choose the right frame, you get a lighter bike, less noise, and almost no mess. You will spend less time on repairs and enjoy a smoother ride every day.
FAQ
Can I put a belt drive on any bike frame?
You can’t install a belt on just any bike frame. You need a frame with a split rear triangle and special dropouts. Most standard frames won’t work. Always check your frame before buying a belt system.
How do I know if my frame is belt drive compatible?
Look for a split in the rear triangle and adjustable dropouts. Check the manufacturer’s specs for “belt drive ready.” If you see these features, your frame should support a belt.
Do belt drives need special maintenance?
You don’t need much maintenance for a belt drive. Just keep it clean and check the tension sometimes. You won’t have to oil it like a chain. Belts last longer and stay quiet.
What are the main benefits of using a belt drive?
You get a cleaner ride, less noise, and longer life with a belt. Belts don’t rust or stretch like chains. Many riders love the smooth feel and low upkeep.
Can I upgrade my old bike to a belt drive?
Upgrading an old bike to a belt is tough. You would need to cut the frame and add new dropouts. Most people find it easier to buy a frame made for a belt drive.
