Choosing the right brake system for your rim brake bike frame is very important for your bike ride. It can change how well you ride, how much you need to fix it, how heavy it is, and if it fits your style. Here are some key points to think about:
In 2023, 68% of road cyclists liked disc brakes. They preferred them because they stop well every time.
Disc brakes work better in the rain, which means you can stop faster.
Rim brake bike frames might be easier to use and cheaper. However, they can have problems in bad weather.
Knowing these things helps you choose what works best for your cycling needs.
Key Takeaways
Disc brakes stop better, especially when it’s wet. This makes them safer for all riders.
Rim brakes are usually lighter and easier to fix. This makes them a good choice for beginners and budget-friendly cyclists.
Knowing the good and bad sides of each brake type helps you pick the best one for your riding style and conditions.
Regular care is important for both brake types. Rim brakes are easier, while disc brakes need more special care.
Think about where you ride. If you ride on different terrains or in wet weather, disc brakes work better.

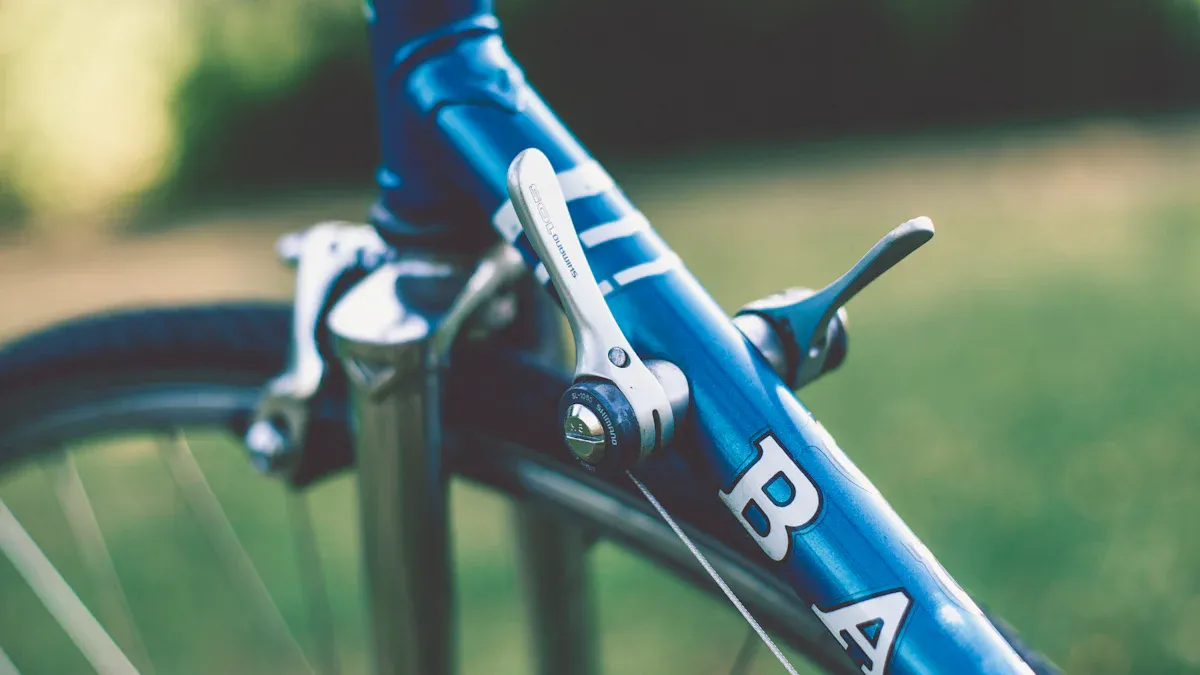

Rim Brake Mechanics
Components of Rim Brakes
Rim brakes have important parts that work together to stop your bike. Here’s a list of these parts:
Component Type | Description |
|---|---|
Mechanism for applying brakes | Brake levers or pedals that let you use the brakes. |
Signal transmission mechanism | Bowden cables, hydraulic hoses, rods, or the bicycle chain that send your commands. |
Brake mechanism | Caliper or drum that pushes surfaces together to change movement energy into heat. |
These parts are very important for how rim brakes work. When you pull the brake lever, it starts the brake mechanism, which then pushes on the wheel’s rim.
Braking Force Application
When you use the brakes, the braking force goes right to the wheel’s rim. This force makes friction between the brake pads and the rim, slowing your bike down. Here’s how the braking force affects the wheel:
Force Type | Effect on Spokes |
|---|---|
Braking Force | Increases rear spoke tension by 5% and decreases front spoke tension by 5% |
Radial Load | Changes spoke tension because of compression in the rim |
Torque on Hub | None, as the hub spins freely due to bearings |
Knowing how braking force works helps you understand the mechanics of your rim brake bike frame. This knowledge can make your ride better and improve your bike’s performance.

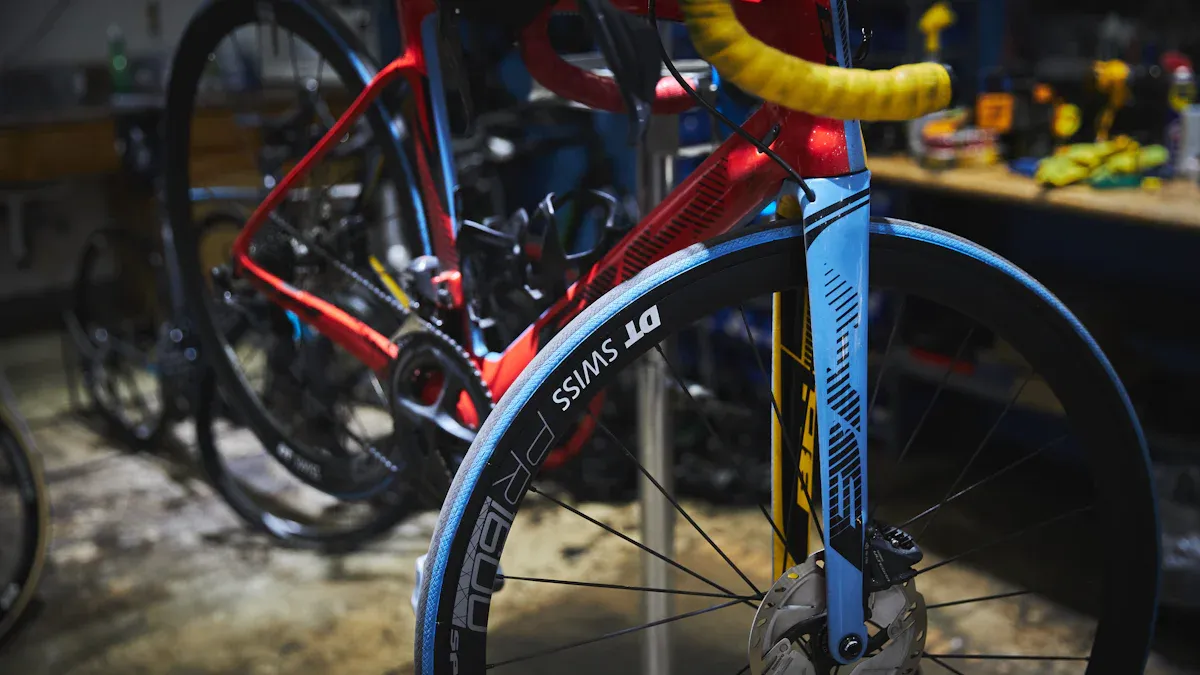

Disc Brake Mechanics
Components of Disc Brakes
Disc brakes have several important parts that work together to stop your bike. Here’s a list of the main pieces:
Caliper: This holds the brake pads and has the pistons.
Brake pads: These press against the rotor to make friction.
Rotor: A metal disc on the wheel hub that the brake pads squeeze.
Mounting hardware: This keeps the caliper attached to the frame or fork.
Brake lever: Usually a V-brake lever or a short pull lever for road brakes.
Cables and housing: These send your commands from the lever to the caliper.
Disc brakes are stronger than regular V-brakes. They need less hand strength to use. When you pull the brake lever, the caliper squeezes the rotor instead of the rim. This design works better, especially when it’s wet.
Braking Force Application
When you use the brakes, hydraulic pressure from the brake fluid pushes on the pistons in the caliper. This pressure forces the brake pads against the rotor. The contact between the pads and rotor creates friction, which is key for slowing down your bike.
This braking force works well because it spreads pressure evenly across the rotor. So, you get steady stopping power, even in tough conditions. The rotor’s design helps get rid of heat, lowering the chance of brake fade on long hills.
Knowing how disc brakes work can improve your cycling experience. You feel more confident knowing you have good stopping power. Whether you’re going down steep hills or riding on wet roads, disc brakes give you the control you need.
Pros and Cons of Rim Brake Bike Frames
Advantages of Rim Brakes
Rim brakes have many benefits that many cyclists like. Here are some main advantages:
Inexpensive Purchase: Rim brake bike frames usually cost less than disc brake systems. This makes them a good choice for people on a budget.
Cheaper Spare Parts: Parts for rim brakes are often cheaper. This helps save money for repairs over time.
Easy Installation and Maintenance: You can easily install and take care of rim brakes. Their simple design needs less skill, which is good for new cyclists.
Lightweight: Rim brakes can be up to 500 grams lighter than disc brakes. This weight saving helps riders when climbing hills.
Here’s a summary of the advantages:
Advantage | Description |
|---|---|
Inexpensive purchase | Lower cost than disc brakes. |
Cheaper spare parts | Replacement parts are usually less expensive. |
Easy installation and maintenance | Simple to set up and care for, needing less skill. |
Lightweight | Can save up to 500g in weight, good for climbing. |
Also, rim brakes have a classic look that many cyclists enjoy. Their simple design allows for easy adjustments with common tools.
Disadvantages of Rim Brakes
Even with their benefits, rim brakes have some downsides. Here are the main disadvantages to think about:
Performance in Wet Conditions: Rim brakes can have trouble in the rain. The braking power depends on friction between the pads and the rim, which can drop when wet. This can make stopping take longer and reduce control.
Obsolescence Concerns: As more people choose disc brakes, some cyclists worry that rim brakes might not be used much anymore. This could make finding parts and help harder in the future.
Heat Dissipation Issues: Rim brakes can get very hot when used for a long time. This heat can cause brake fade, making them less effective, especially on steep hills.
Limited Modulation: Rim brakes might not let you control the braking force as well as disc brakes. This means it could be tougher to manage how hard you brake, especially in tricky situations.
Here’s a summary of the disadvantages:
Wet conditions can make stopping take longer.
Worries about becoming outdated may affect parts availability.
Heat issues can cause brake fade on long hills.
Limited control can make it harder to manage braking force.
Knowing these pros and cons helps you decide if a rim brake bike frame is right for your cycling needs.
Pros and Cons of Disc Brake Bike Frames
Advantages of Disc Brakes
Disc brakes have many important benefits that cyclists like. Here are some main advantages:
Greater Braking Power: Disc brakes stop your bike faster. You can stop quickly in any weather, which keeps you safe.
Improved Modulation: You can control how hard you brake better. This is helpful in busy traffic or when going down steep hills.
Increased Safety: With better stopping power, you lower the chance of accidents. You can handle tough situations with confidence.
Longer Lifespan for Rims: Disc brakes do not push on the rim. This helps keep your wheels in good shape, so you replace them less often.
Durable Brake Pads: The materials in disc brake pads last longer. This means they perform well for a long time.
Here’s a summary of the advantages:
Advantage | Description |
|---|---|
Greater braking power | Faster stops in any weather condition. |
Improved modulation | Precise control, especially in heavy traffic. |
Increased safety | Reduces accident risks with better stopping power. |
Longer lifespan for rims | Preserves wheel integrity, reducing replacements. |
Durable brake pads | More wear-resistant materials for longevity. |
Disadvantages of Disc Brakes
Even with their benefits, disc brakes have some downsides. Here are the main disadvantages to think about:
Disadvantage | Description |
|---|---|
Good disc brakes cost more than rim brakes. You also need a frame and wheel that fit. | |
Disc brakes can make it hard to attach fenders and racks. This can limit your choices and may cost more to fix. | |
Expensive Brake Pads | Disc brake pads are usually more expensive and wear out faster, especially off-road. |
Overheating Risks | Using them for a long time can cause overheating. This might warp the disc, needing replacement parts, which adds to your costs. |
Knowing these pros and cons helps you decide if a disc brake bike frame is right for you. You should think about the performance benefits and the possible costs and maintenance issues.
Mechanical vs. Hydraulic Disc Brakes
Mechanical Disc Brakes
Mechanical disc brakes work with a cable system. When you pull the brake lever, a steel cable moves to the caliper. This pushes the brake pads against the rotor. This creates friction that slows your bike down. Here are some important features of mechanical disc brakes:
Actuation Method: They use a cable to transfer your pulling force.
Braking Force: The stopping power depends on how hard you pull the lever.
Maintenance: These brakes are easy to maintain because of their simple design.
Hydraulic Disc Brakes
Hydraulic disc brakes work in a different way. They use a sealed fluid system to send force from the lever to the caliper. This design makes the braking force stronger and more efficient. Here are some key points about hydraulic disc brakes:
Actuation Method: They use fluid pressure instead of a cable.
Braking Force: The hydraulic system gives you more stopping power with less effort.
Modulation and Feedback: You get better control and feedback for smoother stops.
Here’s a comparison of the two systems:
Feature | Mechanical Disc Brakes | Hydraulic Disc Brakes |
|---|---|---|
Actuation Method | Cable-based system | Fluid-based system |
Force Transfer | Uses a steel cable to connect lever to caliper | Uses a sealed fluid system to transfer force |
Braking Force | Directly related to lever pull | Stronger force due to hydraulic pressure |
Modulation and Feedback | Less responsive | Better modulation and feedback |
Maintenance | Generally easier to maintain | More complex maintenance because of fluid system |
In tests, hydraulic systems had an average emergency stopping distance of 23-27 feet from 20 mph. Mechanical systems had an average stopping distance of 28-35 feet at the same speed. To slow down at 0.5g, hydraulic systems needed only 2.1-2.5 kg of lever force, while mechanical systems needed 3.0-4.2 kg.
Knowing these differences helps you pick the right brake system for your cycling needs. Whether you like the simplicity of mechanical brakes or the efficiency of hydraulic ones, understanding their features can improve your riding experience.
Performance Comparison
Braking Power and Control
When you look at braking power and control for rim brakes and disc brakes, there are big differences. Disc brakes usually work better than rim brakes when it comes to stopping power. Here’s how they compare:
Stopping Power:
Disc brakes have much better stopping power, especially when it’s wet. Their design helps keep the brake pads dry and clean, which helps them stop well.
Rim brakes are okay but have trouble in the rain. Their pads can lose grip when wet, making it take longer to stop.
Modulation:
Disc brakes let you control your braking better. You can adjust how hard you brake more easily, which is important when going fast or in traffic.
Rim brakes are simpler to use but don’t respond as well. This makes it harder to change your braking force smoothly.
Here’s a quick comparison of their features:
Feature | Rim Brakes | Disc Brakes |
|---|---|---|
Stopping Power | Better, important for fast descents | |
Modulation | Simpler, less responsive | Better control, feels more responsive |
Heat Dissipation | Can fade when hot | Steady performance, not affected by weather |
Consistency | Depends on rim condition | Steady performance in different conditions |
Performance in Various Conditions
The way rim and disc brakes work changes a lot based on the riding conditions.
Wet Conditions: In wet or muddy weather, disc brakes do really well. Their pads, usually made of resin with metal bits, grip better than the rubber or cork pads in rim brakes. Disc brakes are also built to be smaller and protected from rain, which helps keep water away. This design gives them a stronger grip, making braking more effective.
Dry Conditions: Rim brakes can work fine in dry weather. If you know how to build wheels, you might find that rim brakes cost less to maintain over time. Still, they can’t match the overall performance of disc brakes, especially when it comes to getting rid of heat. Disc brakes can safely apply much more force, making them more effective.
General Performance: Both rim and disc brakes showed similar stopping distances in tests on dry and wet roads. The results showed that stopping distances were often close, with differences mostly due to how fast the rider reacted, not the type of brake.
Maintenance Considerations
Taking care of your bike’s brakes is very important for safety and performance. Both rim and disc brakes need regular care, but they need different types of maintenance.
Rim Brake Maintenance
Rim brakes are usually easier to take care of. Here are some important tasks you should do often:
Check brake pads for wear and change them if needed.
Look at cables and housing for dirt and resistance problems.
Clean brake pads to get rid of dirt.
Make sure brake pads are lined up correctly with the rim (toe-in adjustment).
Check rims for wear and damage.
Do not put lubricant on brake pads or braking surfaces.
You can follow these steps to keep your rim brakes working well:
Regularly check brake pads for wear and dirt.
Clean brake pads with isopropyl alcohol or a gentle cleaner.
Use the right type of brake pads for your wheel material.
Occasionally scuff or sand the pads to help them work better.
Adjust the toe-in of the brake pads for best performance.
Regularly check rims for wear and damage.
Clean the braking surfaces of the rims for effective braking.
Change brake pads when they are worn down to indicators.
Disc Brake Maintenance
Disc brakes need a bit more care. Here are the main tasks for maintenance:
Clean the brake pads and rotors to remove dirt.
Check the brake pads for wear and replace them if needed.
Bleed the brakes to get rid of air bubbles and improve performance.
Make sure the brake parts are aligned correctly.
For cleaning, you will need:
Isopropyl alcohol or special disc brake cleaner.
A clean, lint-free cloth or paper towels.
A small brush (like a soft toothbrush or a special brake brush).
Latex gloves (optional).
A brake pad alignment tool.
Comparing Maintenance Needs
When you compare the maintenance needs of rim and disc brakes, think about this:
Brake Type | Complexity of Repairs | DIY Repair Ease | |
|---|---|---|---|
Rim Brakes | Lower | Simpler | Easier |
Disc Brakes | Higher | More Complex | Harder |
Rim brakes usually cost less to maintain over time. You can do most tasks yourself without special tools. On the other hand, disc brakes might need more complicated repairs and special knowledge, which can lead to higher costs and fewer available parts.
Knowing these maintenance tips helps you pick the right brake system for your cycling needs. Regular care keeps your bike safe and performing well on every ride.
Weight Considerations
Weight of Rim Brake Frames
Rim brake frames usually weigh less than disc brake frames. This weight difference can change how you ride your bike. Here are some important points to think about:
Average Weight Difference: A rim brake bike is usually 250g to 450g lighter than a disc brake bike. This can really help, especially when climbing hills or riding for a long time.
Material Choices: Many rim brake frames use lighter materials. Companies often make these frames more aerodynamic, which can improve how they perform.
Simplicity: Rim brakes have a simpler design. This simplicity often makes the whole frame lighter.
Weight of Disc Brake Frames
Disc brake frames usually weigh more because they have extra parts. Here’s what you need to know:
Added Components: Disc brakes need extra parts like rotors and calipers. These parts add weight to the bike frame.
Sturdiness: Many disc brake frames are made to handle more stress. This sturdiness can make the frame heavier, which can be good for some riding styles, like mountain biking.
Performance Trade-offs: Even though disc brake frames may weigh more, they give you better stopping power and control. This is very important for safety, especially in tough conditions.
Suitability for Different Cyclists
Best Uses for Rim Brakes
Rim brakes are good for many kinds of cyclists. Here are some times when you might want a rim brake bike frame:
Beginners: If you are just starting to ride, rim brakes are simple to use. Their easy design helps you learn how to brake.
Road Cyclists: Rim brakes are popular on road bikes. They stop well on smooth roads, making them great for road cycling.
Budget-Conscious Riders: Rim brake bike frames usually cost less. If you want to save money, these brakes are a smart choice.
Casual Riders: If you ride for fun and not for racing, rim brakes can work well without extra costs.
Best Uses for Disc Brakes
Disc brakes are great in many situations and for different types of cyclists. Here are some times when you might pick a disc brake bike frame:
Wet Conditions: If you ride in the rain or on slippery roads, disc brakes are best. They stop better, keeping you safe in tough weather.
Diverse Terrains: Disc brakes work well on many surfaces, like gravel and dirt. They give you confidence to ride on different paths without worrying about stopping.
Safety-Focused Cyclists: If safety is important to you, disc brakes provide strong and accurate stopping. This helps lower the chance of accidents, especially in busy areas.
Performance Riders: Serious cyclists often choose disc brakes for their strong stopping power. They work well when going fast and in bad weather.
When choosing between rim and disc brake bike frames, think about a few important things. First, consider how easy they are to take care of. Rim brakes are simpler to fix in remote places. Weight is another factor; rim brake setups can make your bike lighter. But if you ride in the rain, disc brakes work better.
Brake Type | Advantages | Disadvantages |
|---|---|---|
Disc Brakes | – Better control over how hard you brake | |
– More stopping power | – More complicated to maintain | |
Rim Brakes | – Lighter overall weight | – Not as good in wet weather |
– Easier to adjust and take care of | – Less space for tires compared to disc brakes |
In the end, pick what fits your riding style and where you ride for the best experience. 🚴♂️
FAQ
What are the main differences between rim brakes and disc brakes?
Rim brakes push on the wheel’s rim. Disc brakes squeeze a rotor on the wheel hub. Disc brakes usually stop better and work well in wet weather.
Are rim brakes easier to maintain than disc brakes?
Yes, rim brakes are easier to take care of. You can change pads and adjust them without special tools. Disc brakes need more complicated care, like bleeding the hydraulic system.
Which brake system is better for beginners?
Rim brakes are often better for beginners. Their simple design makes them easier to use and fix. You can learn basic braking skills without the extra complexity of disc brakes.
Do disc brakes weigh more than rim brakes?
Yes, disc brakes usually add weight because of extra parts like rotors and calipers. Rim brake frames are lighter, which helps when climbing hills or riding long distances.
Can I convert my rim brake bike to disc brakes?
You can change a rim brake bike to disc brakes, but it may need big changes. You will need a frame, fork, and wheels that work with disc brakes. Think about the costs and work needed before you start.
See Also
Understanding The Differences Between Fat And Mountain Bike Frames
A Buyer’s Guide To Carbon, Aluminum, And Steel Bike Frames
Comparing Enduro Bike Frame Materials For Durability And Strength
