Here are the essential bike frame components you will find on most modern bicycles:
Component | Main Function |
|---|---|
Top tube | Connects the seat tube to the head tube for overall frame strength. |
Down tube | Links the head tube to the bottom bracket, supporting the bike’s structure. |
Seat tube | Holds the seat post and saddle, supporting rider weight. |
Chain stays | Connect the bottom bracket to the rear dropouts for stability and power. |
Seat stays | Join the seat tube to the rear dropouts, adding support and comfort. |
Head tube | Houses the headset, allowing smooth steering. |
Fork | Holds the front wheel and absorbs bumps. |
Bottom bracket | Supports the crankset and enables pedal rotation. |
Dropouts | Secure the wheels to the frame. |
Knowing the parts of a bicycle helps you choose the right bike and maintain it well. When you understand bike frame components and bike parts, you can spot quality differences, improve comfort, and reduce maintenance needs. A good bicycle anatomy guide shows that the right balance of essential bike parts and frame design affects how your bicycle rides and how often you need to service it. Focusing on the parts of a bicycle rather than just weight lets you get the best value and performance from your bike parts.
Key Takeaways
The main bike frame parts are the top tube, down tube, and seat tube. These parts make a strong triangle. This triangle holds your weight and keeps the bike steady.
Frame geometry and material change how your bike feels and works. Pick them based on how you like to ride and what feels good to you.
Chain stays and seat stays work together to keep the bike stable. They help move your power to the bike and hold up the back wheel.
Important connection parts are the head tube, fork, bottom bracket, headset, and dropouts. These parts help your bike turn well and move power to the wheels. They also keep the wheels in place.
Braze-ons and bosses let you add things like water bottles and racks. This makes your bike more useful and lets you change it for your needs.

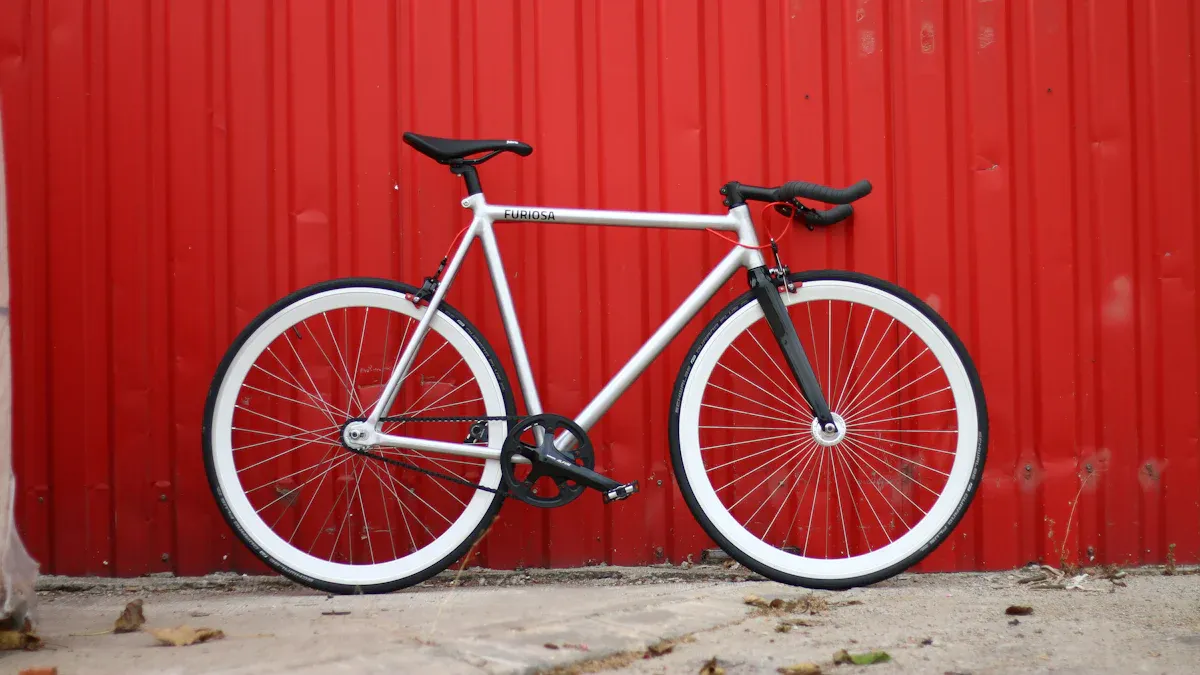

Bike Frame Components Overview
Main Structure
When you look at a bike, you see tubes joined together. The main parts are the top tube, seat tube, and down tube. These connect at special spots called nodes. The tubes make a strong shape like a truss. Each tube moves force between the wheels, pedals, and seat. This helps the bike stay strong and steady. The top tube joins the seat tube to the head tube. The down tube links the head tube to the bottom bracket. The seat tube holds your weight and the seat post. How these tubes fit together gives the frame its strength and shape.
Frame Element | Connected Nodes | Approximate Angle (°) |
|---|---|---|
Tube 1 | Node 1 – Node 2 | 133.33 |
Tube 2 | Node 2 – Node 4 | 0 |
Tube 3 | Node 1 – Node 3 | 0 |
Tube 4 | Node 1 – Node 4 | 74 |
Tube 5 | Node 3 – Node 4 | 128.2 |

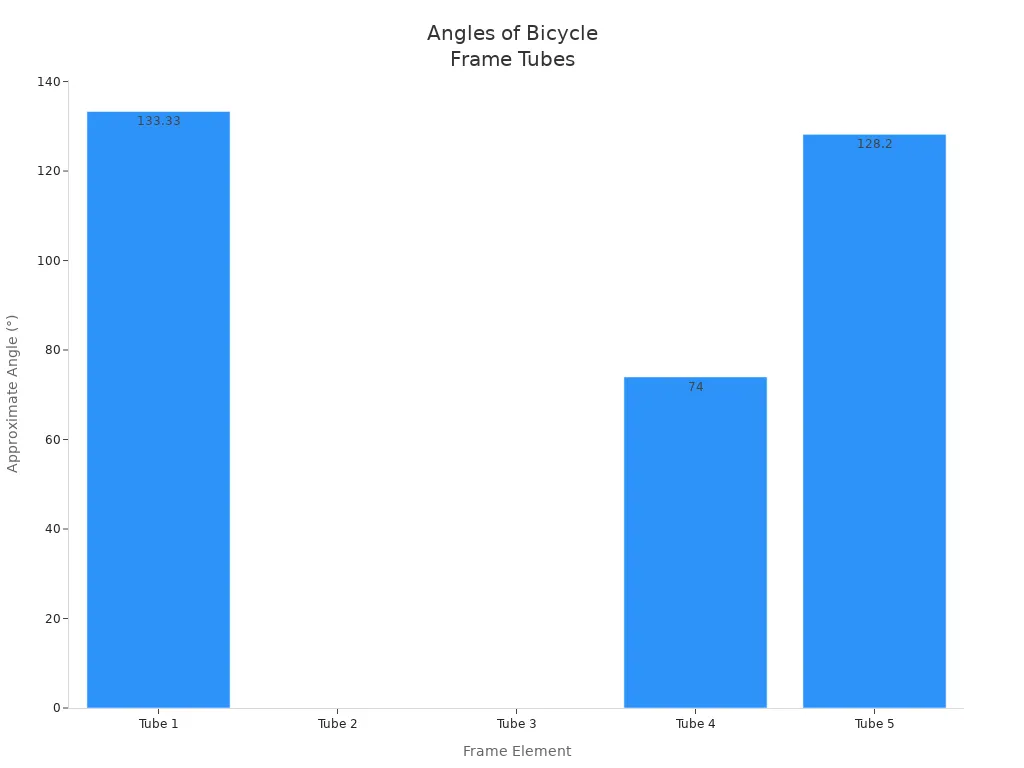

This table shows how the tubes join at different angles. These angles help make the bike frame strong and balanced.
Frame Geometry
Frame geometry changes how your bike feels and moves. The angles and lengths of the tubes affect how you sit and steer. A road bike has a longer frame for speed and a bent-over position. A mountain bike has a lower front for better control on rough ground. The seat tube angle can change how hard you pedal. Good geometry makes the bike stiff for power and soft for comfort. This helps you ride smoother and use less energy. The bike frame parts work together to give you good control and comfort.
Frame Materials
The frame material changes how heavy, strong, and costly your bike is. Steel is tough and easy to fix but weighs more. Aluminum is light and stiff, so many bikes use it. Carbon fiber is very light and shaped for speed, but it costs more and needs care. Titanium gives a smooth ride and does not rust, but it is pricey. Each material changes how the bike parts work and how long the bike lasts. New materials make bikes lighter, faster, and more comfy. This helps all riders get better performance and use from their bikes.

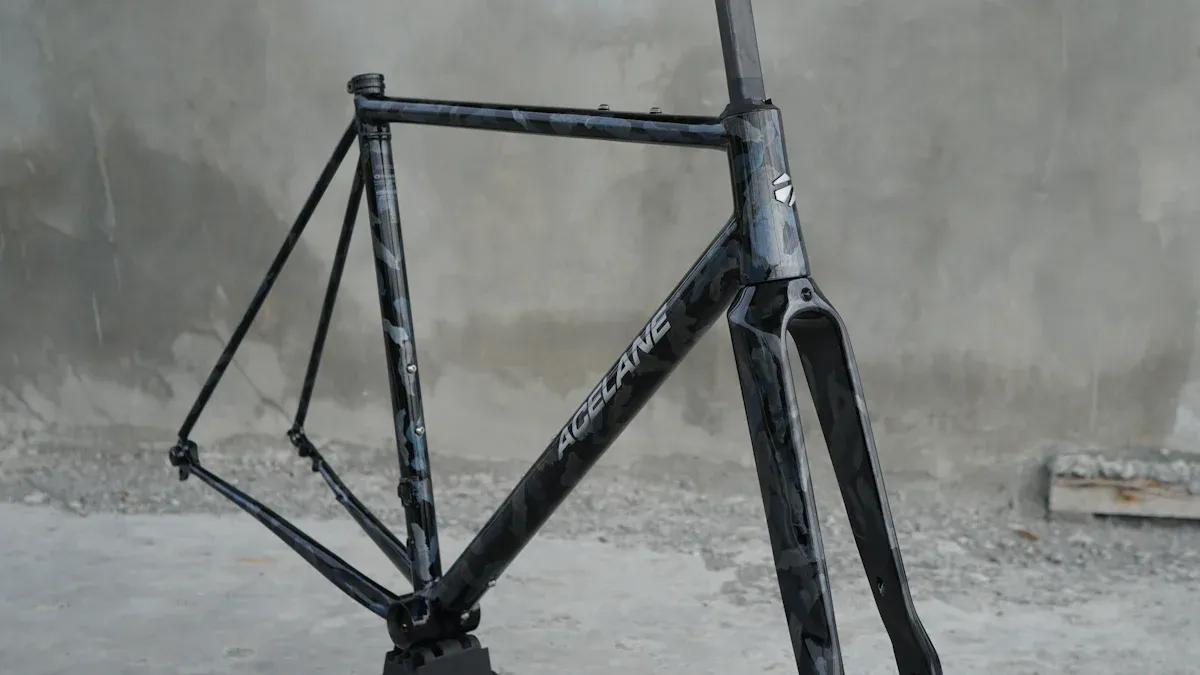

Essential Bike Parts in the Frame
Top Tube
The top tube is one of the most important bike frame components. You see it running from the seat tube to the head tube. This tube helps connect the front and rear of your bicycle, forming part of the strong triangle that gives the frame its shape. The length and shape of the top tube affect how you sit and reach the handlebars. If you choose a bicycle with a longer top tube, you stretch out more, which can make you faster but less comfortable. A shorter top tube lets you sit upright and feel more relaxed. Some bikes use a sloping top tube, which lowers the standover height and increases stiffness in the front triangle. This design can make your ride smoother by allowing the seat post to flex and absorb bumps. When you look at essential bike parts, the top tube plays a big role in both comfort and frame strength.
Down Tube
The down tube is the largest tube in the frame. It runs from the head tube down to the bottom bracket. This part of a bicycle gives the frame most of its structural support. The down tube resists twisting and bending, especially when you pedal hard. Engineers design the down tube to be stiff so you can transfer power from your legs to the rear wheel efficiently. The size and shape of the down tube also help keep the wheels aligned and improve handling when you turn. You get better performance from your bike when the down tube is strong and well-designed. This is why many bike components focus on making the down tube both light and stiff.
The down tube has the widest cross-section in the frame, providing primary support.
It resists twisting and lateral deformation, especially near the bottom bracket.
Stiffness in the down tube reduces frame flex during pedaling, improving power transfer.
The shape influences torsional stiffness, which helps with precise handling.
Engineers use special methods to design the down tube for maximum stiffness without adding too much weight.
Seat Tube
The seat tube supports your weight and holds the seat post and saddle. This tube runs from the bottom bracket up to the seat cluster. The seat tube length decides how high or low you can set your saddle, which affects comfort and pedaling efficiency. The angle of the seat tube changes your riding position. A steeper angle moves you forward, helping you pedal harder and distribute your weight better, especially when climbing. The seat tube also works with other bike frame components to keep the geometry balanced. Some bicycles let you adjust the seat tube angle or use dropper posts for more comfort and control.
Seat Tube Aspect | Role in Supporting Rider and Frame Geometry | Impact on Rider and Bike Performance |
|---|---|---|
Seat Tube Length | Determines maximum and minimum saddle height, affecting rider fit and comfort. | Influences standover height, affecting rider comfort and bike handling. Ensures proper saddle height for efficient pedaling and power transfer. |
Actual Seat Tube Angle | Defines the angle between seat tube and horizontal line, influencing rider’s seated position. | A steeper angle moves rider forward, improving pedaling efficiency and weight distribution, especially during climbs. |
Effective Seat Tube Angle | Reflects the angle considering saddle height at riding position, representing actual rider posture during pedaling. | Affects weight distribution between wheels and climbing efficiency; adjustable in some modern designs for optimized fit. |
Interaction with Other Geometry Factors | Seat tube length and angles interact with top tube length, reach, and bottom bracket height. | Combined influence ensures comfortable, efficient riding position and maintains intended frame geometry. |
Adjustability | Use of dropper posts and suspension features can fine-tune saddle height and effective seat angle. | Allows dynamic adjustment for comfort and performance during different riding conditions. |
Chain Stay

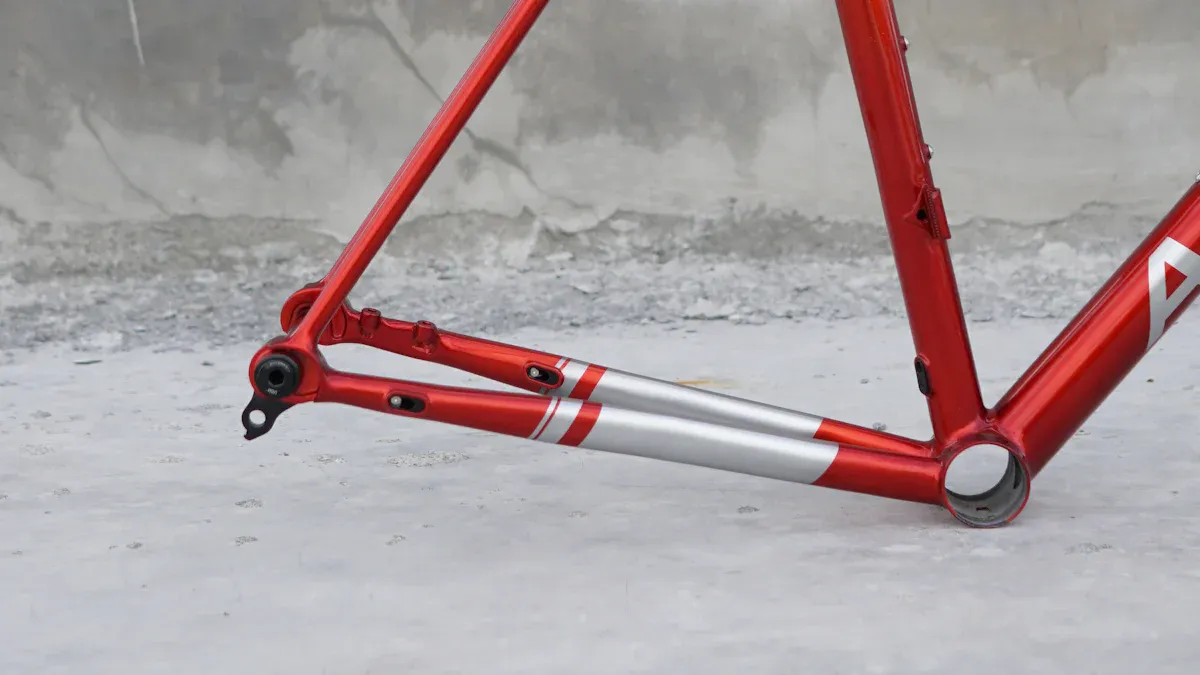

Chain stays are the tubes that run from the bottom bracket to the rear dropouts. These bike components help connect the pedals to the rear wheel. Chain stays play a big part in stability and power transfer. If you pick a bicycle with longer chain stays, you get more stability and better traction, especially at high speeds or on rough ground. Shorter chain stays make your bike more agile and responsive, which helps with quick turns and fast acceleration. Stiffer chain stays improve power transfer, so you feel more of your effort going straight to the rear wheel. Manufacturers often adjust chain stay length to balance comfort, handling, and performance for different bike sizes.
Chain stay length affects the bike’s wheelbase and handling.
Longer chain stays increase stability and shift more weight to the front wheel.
Shorter chain stays make the bike more agile and responsive.
Stiffer chain stays provide better power transfer during sprints.
Size-specific chain stay lengths help balance rider weight and improve stability.
Seat Stay
Seat stays are the thin tubes that run from the seat tube to the rear dropouts. These essential bike parts help keep the rear wheel aligned and add support to the rear triangle of the frame. Seat stays mostly handle compressive loads and do not flex much to absorb shocks. Some designs use dropped or curved seat stays to allow a little more flex, but most vibration absorption comes from the seat post, tires, and frame geometry. The main job of seat stays is to keep your bicycle strong and stable. They work with other bike frame components to maintain the shape and stiffness of the frame, which helps with handling and comfort.
Tip: While seat stays do not absorb much vibration, choosing the right seat post and tires can make your ride smoother.
All these bike parts work together to create a strong, stable, and comfortable bicycle. The top tube, down tube, seat tube, chain stay, and seat stay each have a special role in the frame. When you understand how these bike components interact, you can choose the best bicycle for your needs and keep it in good shape.
Key Bike Components for Connection
Head Tube
You find the head tube at the front of the frame. This part connects the fork to the rest of the bike components. The head tube holds the headset, which lets you steer smoothly. The angle of the head tube changes how your bike handles. A steeper angle gives you quick steering, while a slacker angle makes your ride more stable at high speeds. The head tube works with other bike parts to keep your front end strong and precise.
Fork
The fork connects the front wheel to the frame. You use the fork to steer and absorb bumps. Different fork designs change how your bike feels. Rigid forks give you sharp handling and help you climb better. Suspension forks absorb shocks, making rough trails smoother. Fork material matters too. Carbon fiber forks are light and soak up vibrations, while steel forks feel sturdy. The fork is one of the most important bike components for comfort and control.
The fork supports your weight and helps you steer.
Suspension forks improve comfort on rough ground.
Rigid forks work best on smooth roads and help you save energy.
Bottom Bracket
The bottom bracket sits at the lowest point of the frame. This part holds the crank arms and lets the pedals spin. When you push the pedals, the bottom bracket transfers your power to the drivetrain. High-quality bottom brackets use smooth bearings to reduce friction. This means you lose less energy and get better performance. The bottom bracket is one of the key bike parts for efficient power transfer.
Location on Frame | Function / How it Facilitates Attachment | |
|---|---|---|
Bottom Bracket | Bottom of frame | Houses sealed bearings; allows crank arms (with pedals) to rotate smoothly via spindle, enabling power transfer. |
Headset
The headset sits inside the head tube. You use the headset to steer your bike. It has bearings that let the fork turn easily. A good headset keeps your steering smooth and stable. If your headset is loose or rough, you will notice poor handling. The headset is one of the bike components that protects your frame and fork from wear. You need to check and adjust this part to keep your bike safe.
Dropouts
Dropouts are slots at the ends of the frame and fork. You use dropouts to attach the wheels. Vertical dropouts make wheel installation easy and keep the axle fixed. Horizontal dropouts let you adjust the wheel position, which helps with chain tension on single-speed bikes. Dropouts are important bike parts for quick wheel changes and keeping your drivetrain running well. Some dropouts have replaceable hangers to protect your frame if the derailleur or brake gets damaged.
Tip: Always check your dropouts before installing wheels to make sure your bike components are secure.
Connection Point | Location on Frame | Function / How it Facilitates Attachment |
|---|---|---|
Dropouts | Rear and front ends of frame and fork | Mount points for wheel hubs; secure axle attachment allowing wheels to spin freely or drive the bike forward (rear hub). |
All these bike parts work together to connect your wheels, pedals, and handlebar. When you understand how these components function, you can keep your bike running smoothly and enjoy better control, comfort, and power transfer.
Additional Parts of a Bicycle Frame
Braze-Ons and Bosses
When you look at modern bike frames, you notice small fittings attached to the tubes. These are called braze-ons and bosses. You use these bike components to mount accessories and extra gear. They make your bike more useful and let you set it up for your own needs. Braze-ons and bosses give you the freedom to add or remove parts as you like.
Braze-ons are small pieces that builders attach to the frame. On steel frames, they use a process called brazing. On aluminum or carbon frames, they might weld, glue, or mold these fittings in place. No matter the method, these components serve the same purpose: they give you secure places to attach other bike components.
Here are some common braze-ons and bosses you will find on many bikes:
Frame Part | Description / Function |
|---|---|
Gear or brake cable stops | Hold the ends of cable housing so the inner cable moves smoothly. |
Downtube shifter bosses | Let you attach shifters for changing gears. |
Rack mounting lugs | Provide strong points to mount racks for carrying bags or cargo. |
Pump pegs | Hold a frame pump in place so you can fix flats on the go. |
Water bottle bosses | Let you attach water bottle cages to stay hydrated during rides. |
Brake bosses (cantilever or V-brake mounts) | Hold brake calipers and let you adjust brake tension. |
You use these bike components to make your bike fit your riding style. For example, if you like long rides, you can add extra water bottles. If you need to carry groceries or gear, you can mount racks or fenders. Some bikes have extra bosses for even more options. These components help you turn a basic frame into a bike that matches your needs.
Tip: When you choose a bike, check for the braze-ons and bosses you need. The right bike components make your bike more comfortable and useful.
Braze-ons and bosses show how bike parts can work together for better function. You get more value from your bike when you use these components to customize it. They help you attach everything from brakes to racks, making your bike ready for any adventure.
When you know all the frame parts on your bike, you make better choices and stay safer. You can choose the best frame material for what you need. You find problems early and keep your bike working well by checking it often. If you know how each brake and frame part works, you avoid mistakes and feel more comfortable. Taking care of your bike is easier when you look at it often and fix pedals and brakes when needed. You feel more sure of yourself, ride better, and keep your bike working great for a long time.
FAQ
What is the most important part of a bike frame?
You rely on the main triangle, which includes the top tube, down tube, and seat tube. These parts give your bike strength and shape. Without them, your bike would not support your weight or stay balanced.
How do frame materials affect my ride?
You feel differences in weight, comfort, and durability. Steel gives you a smooth ride but weighs more. Aluminum feels light and stiff. Carbon fiber offers speed and vibration absorption. Titanium resists rust and lasts longer.
Why do chain stays and seat stays matter?
Chain stays help transfer your pedaling power to the rear wheel. Seat stays keep the rear wheel aligned and add support. Both parts work together to give you stability and control when you ride.
Can I add accessories to any bike frame?
You can add accessories if your frame has braze-ons or bosses. These fittings let you mount racks, water bottles, or fenders. Always check your frame for these features before buying new gear.
Where can I find a bicycle anatomy guide?
You find a bicycle anatomy guide online or at your local bike shop. This guide helps you learn about each part, making it easier to choose, maintain, and upgrade your bike.
