What to Look for When Buying a Titanium Road Bike Frame

When you look for a titanium road bike frame, you want good quality. You also want comfort and a frame that lasts long. Titanium bike frames are special because they feel different when you ride. They are also very reliable. Riders like titanium because it is strong. It does not rust easily. It helps make bumpy roads feel smoother. This makes every ride nicer. You should check if the material is good. Make sure the frame fits you. Look at how much it weighs. Check if the tires have enough space. Many people pick titanium road bike frames because they last a long time. They do not rust. They give a smooth ride.

Why do many riders pick titanium bike frames?
Titanium frames are strong and light
They do not rust for a long time
They are high quality and do not wear out fast
They make rides comfy and help with bumps

Key Takeaways

Pick titanium frames made from strong alloys like Grade 5 or Grade 9. These frames are tough and comfortable. – Make sure the frame size and shape fit your body and riding style. This helps you ride better and feel good. – Titanium frames give a smooth ride. They soak up bumps and shakes better than most other materials. – Titanium frames do not rust. They last for many years, so they are a smart choice for the future. – Choose a frame with enough space for the tires you want now and later.

Titanium Road Bike Frames

Material Quality

When you look at titanium road bike frames, you want to check the material first. Not all titanium is the same. High-quality titanium bike frames use special alloys. These alloys give you the best mix of strength, weight, and comfort. Many top brands use Ti-6Al-4V (Grade 5) or 3Al/2.5V (Grade 9) titanium. These grades have high tensile strength and great durability. They also resist rust and last for years.

Here are some key titanium properties that make these frames stand out:

Titanium is about half the weight of steel but just as strong.
It has a natural coating that stops rust.
The elasticity of titanium helps absorb bumps and road vibrations.
Titanium bike frames have twice the fatigue limit of steel, so they last longer.
The material keeps its strength even at high temperatures.

You can see the difference between the two main grades in the table below:

Property	Grade 5 Titanium (6Al-4V)	Grade 9 Titanium (3Al-2.5V)
Strength	Higher, allows lighter frames	Slightly lower, needs thicker tubes
Weight	Lighter for same size	Heavier for same size
Durability	Less tough, more brittle	More tough, better for crashes
Forming	Simple shapes only	Can be bent and shaped easily

Frame Construction

The way a frame is built matters as much as the material. Most titanium road bike frames use tubes made by rolling titanium sheets. Builders then weld these tubes together. TIG welding in a special gas keeps the frame strong and clean. Grade 9 titanium is popular because it is easy to shape and weld. This lets builders make frames that are both light and tough.

Some brands use both Grade 5 and Grade 9 titanium in one frame. They use Grade 5 for small parts that need extra strength. Grade 9 works well for the main tubes because it can be shaped for comfort and control. The best titanium bike frames use seamless and butted tubing. This design gives you a great ride and keeps the frame light.

Tip: Always ask about the material and welding method when you shop for titanium road bike frames. Good quality means better rides and longer life for your bike.

Fit

Sizing

Getting the right size for your titanium road bike frame makes a huge difference in how you feel on the bike. If you pick the wrong size, you might feel cramped, stretched, or just plain uncomfortable. Here’s a simple way to measure yourself for the best fit:

Stand straight against a wall and measure your height.
Stand with your feet about 6-8 inches apart. Place a book or ruler firmly against your crotch, then measure from the top of the book to the floor. This is your inseam.
Check the seat tube length by measuring from the center of the bottom bracket to the top of the seat tube.
Make sure you have about 2 centimeters of clearance between the top tube and your body when you stand over the bike. This helps with comfort and safety.
Use the manufacturer’s size chart to match your height and inseam to the right frame size.
Try out a few frame sizes if you can. A test ride tells you a lot about comfort and control.
If you want a perfect fit, think about getting a professional bike fitting.

Tip: Frame material, like titanium, does not change the size you need. It does change how the bike feels and lasts.

Many brands offer custom geometry if you have unique needs or want a truly tailored ride. Custom frames cost more, but they can solve fit problems that standard sizes cannot.

Geometry

Frame geometry shapes how your bike handles and feels. It’s not just about numbers—it’s about your ride experience. A bike with a steeper seat tube and shorter top tube puts you in a more forward, aggressive position. This setup boosts aerodynamics and power, great for racing. A longer top tube and relaxed angles give you a more upright posture, which feels better on long rides.

A longer stem helps with stability at high speeds.
A shorter stem makes steering quicker and easier.
Higher handlebars (more stack) let you sit up straighter, which is nice for endurance rides.
Lower handlebars make you more aerodynamic but can feel less comfy.

Titanium frames add to this by soaking up road buzz and keeping their shape for years. So, when you pick your geometry, you get both comfort and lasting performance. Always check the geometry chart and think about how you like to ride. If you want a bike that feels just right, custom geometry is worth a look.

Weight

Titanium vs. Other Materials

When you pick a road bike frame, weight is important. Titanium frames are not the lightest or the heaviest. They are in the middle. You get both strength and comfort with titanium. Look at this table to see how titanium compares to other frame materials:

Frame Material	Average Weight Range	Notes
Carbon	Lightest; can be around or under 3 lbs (1.3 kg) for high-end models	Ultra-light, high-performance frames
Aluminum	Moderately light; heavier than carbon but lighter than many titanium frames	Weight varies with tubing and construction
Titanium	Similar to or slightly lighter than steel; can approach aluminum weights with modern tubing	Balances decent weight with durability and comfort
Steel	Heavier than titanium	Known for durability and smooth ride

Titanium frames usually weigh about the same as steel frames. New tubing methods can make some titanium frames almost as light as aluminum. Carbon fiber frames are the lightest. They often weigh less than 3 pounds. Aluminum frames are heavier than carbon but lighter than most titanium. Steel frames are the heaviest but last a long time.

Titanium is special because it is strong for its weight. It does not rust. It feels light enough for most rides.

Performance Impact

You might ask how frame weight changes your ride. Lighter frames help you climb hills faster. They also help you speed up quickly. Carbon fiber frames can be 400 to 700 grams lighter than titanium. This means you can go up hills and speed up about 8-12% faster on a carbon frame.

Frame Material	Weight Range (grams) for 56cm Frame	Weight Difference Compared to Carbon Fiber	Impact on Climbing and Acceleration Performance
Titanium	1300 – 1600	400 – 700 grams heavier	Heavier weight leads to slower acceleration and climbing; lower stiffness reduces power transfer efficiency
Carbon Fiber	850 – 1200	Baseline (lighter)	Lighter and stiffer, enabling 8-12% faster acceleration and better power transfer efficiency

Titanium frames may not be the fastest in races. But they are great for long rides and rough roads. The extra weight makes the ride smoother. It also helps with bumps. Titanium frames last for years and stay strong. If you want a bike that feels smooth and reliable, titanium is a good pick. It is not the lightest, but it gives you a nice mix of performance, comfort, and strength.

Comfort

Vibration Dampening

When you ride on rough roads, you want your bike to soak up the bumps. Titanium frames do a great job here. They help reduce the shaking you feel from cracks and gravel. Scientists have looked at how titanium compares to other bike materials. Their studies show that titanium frames have better vibration damping than aluminum frames. This means titanium can absorb more of the road buzz. The secret comes from the way titanium’s tiny parts inside the metal move and rub together. This helps your ride feel smoother, even if the road is not perfect.

If you want a bike that feels less harsh on your hands and back, titanium is a smart choice. It may not always have the highest damping, but it still gives you a smoother ride than many other materials.

Long-Distance Riding

You might wonder how titanium frames feel on long rides. Many riders say titanium bikes are great for long distances. They often compare the comfort to steel frames. Riders like that titanium does not rust or chip easily. You can ride for hours, and the frame still feels good. Some people say that tire width, tire pressure, and the way the frame is built matter even more for comfort. If you use wider tires and lower the pressure, your ride will feel even better. Carbon frames are lighter, but they can feel rougher on bumpy roads. Titanium frames give you a comfortable ride, especially if you plan to spend a lot of time in the saddle.

Titanium frames stay strong and smooth for years.
Wider tires and good frame design make long rides even nicer.
Many riders pick titanium for big adventures and daily rides.

Durability

Corrosion Resistance

Titanium road bike frames are great at stopping rust. Titanium almost never gets damaged by water or rain. You can ride in wet weather and not worry about rust. Steel frames can rust if they get wet. Aluminum does not rust much, but it is not as good as titanium. Titanium has a natural layer that keeps water and salt away. This means you do not have to clean your bike as often.

Here’s how different frame materials handle rust:

Material	Corrosion Resistance Characteristics
Titanium	Has excellent resistance to rust; stays safe in rain or water.
Chromoly Steel	Can rust easily; needs care to stop corrosion, especially with other metals.
Aluminum	Makes a thin layer to stop rust; not as strong as titanium in bad weather; can get damaged if touching titanium or steel.

Titanium is so good at stopping rust that it is used in nuclear plants. Your bike will look good and last a long time. If you ride in rain or near the ocean, titanium is the best pick.

Tip: You do not need special sprays to keep titanium safe. Just wipe your bike after a muddy ride and you are done!

Repair and Longevity

Titanium frames are known for lasting a long time. If you take care of your bike, it can last over 20 years. Many people say titanium frames can last a lifetime. Titanium is as strong as steel but does not rust. Aluminum frames can get weak as they age. Carbon frames can break if hit hard. Titanium keeps its shape and works well for many years.

Titanium frames use strong alloys like 3AL2.5V and 6AL4V. These alloys make the frame strong and help it last longer.
Good welds help your titanium frame stay strong.
If your titanium frame gets scratched or dented, it can be fixed. Skilled workers can repair most problems, so you do not need a new frame.
You can change parts and keep your titanium frame for a long time. Most people only change the bike parts, not the frame.

Titanium frames last a long time. You do not have to worry about rust or the frame getting weak. Your bike will feel good and work well, even after many miles.

If you want a bike that lasts, titanium is a smart choice. You will get smooth rides and strong performance for many years.

Tire Clearance

Road vs. All-Road

When you look at titanium road bike frames, tire clearance is a big deal. Tire clearance means the space your frame gives for tires. If you want to ride only on smooth roads, you might not need wide tires. Most classic titanium road frames fit tires up to 35mm wide. This size works well for racing and long rides on pavement. For example, the Litespeed Coll dels Reis, Spezia, Ultimate, and Arenberg all fit up to 35mm tires. These bikes give you a good mix of speed and comfort.

If you want more adventure, you might want a frame that fits wider tires. All-road and gravel titanium frames can handle much bigger tires. Some, like the Litespeed T5G, fit up to 38mm. Others, like the SuperSomething Titanium, can fit tires as wide as 64mm (that’s a 29 x 2.2″ tire!). These frames let you ride on gravel, dirt, or rough roads without worry.

Here’s a quick look at how different titanium frames compare:

Titanium Frame Model	Tire Clearance	Intended Use / Impact on Versatility
Litespeed T5G	Up to 38mm	Gravel and mixed terrain; very versatile
SuperSomething Titanium	29 x 2.2″ (64mm)	Adventure, gravel, and rough roads
Litespeed Coll dels Reis	35mm	Road racing and endurance
Litespeed Spezia	35mm	Road racing and endurance
Litespeed Ultimate	35mm	Road racing and endurance
Litespeed Arenberg	35mm	Endurance, rougher roads

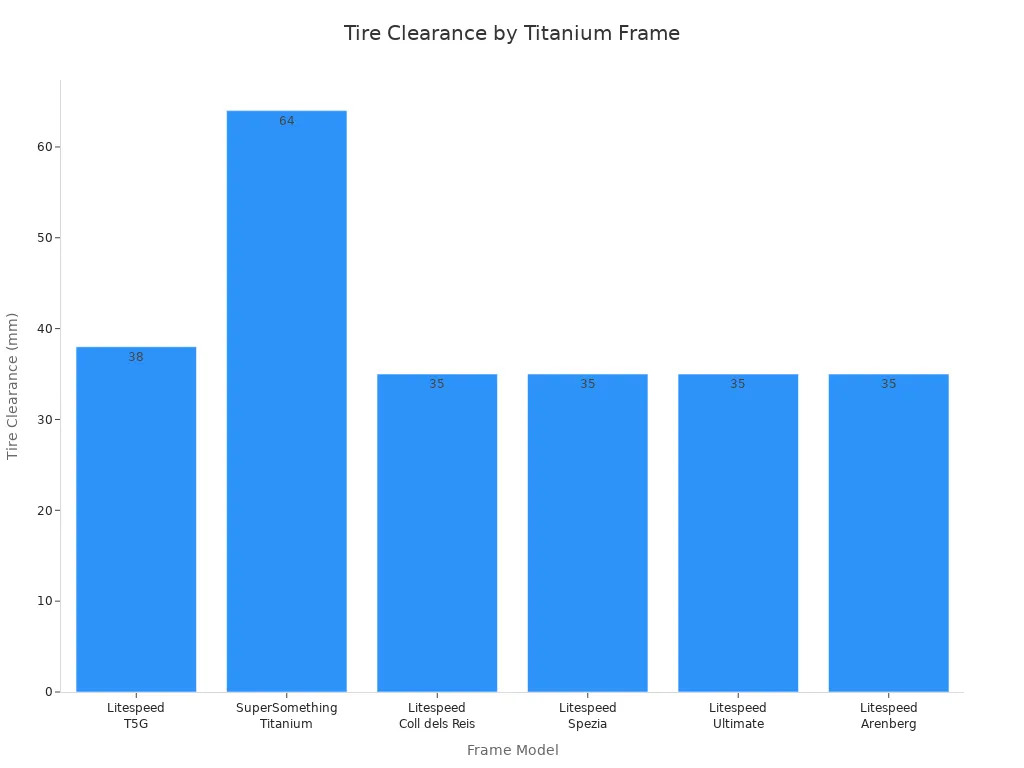

You can also see the difference in this chart:

Bar chart comparing tire clearance for six titanium road bike frames

Tip: If you want to ride on more than just pavement, pick a frame with bigger tire clearance. It gives you more choices for where you can go.

Future-Proofing

Tire trends change fast. A few years ago, 25mm tires were the norm. Now, many riders use 28mm, 32mm, or even wider. If you pick a titanium frame with more tire clearance, you get more options in the future. You can try new tire sizes as they come out. You can also switch between skinny road tires and wide gravel tires if you want.

Some all-road titanium frames, like the BlackHeart Allroad Ti and Carver Ti All-Road, fit tires up to 40mm or even 45mm. With 650b wheels, you can go up to 50mm. Here’s a table to show how all-road frames compare:

Frame Model	Frame Type	Max Tire Clearance (700c)	Max Tire Clearance (650b)
BlackHeart Allroad Ti	Titanium All-Road	Up to 40mm	Up to 50mm
Carver Ti All-Road	Titanium All-Road	Up to 45mm	Up to 50mm
Litespeed Cherohala	Road/All-Road	38mm	N/A

If you want your bike to last for years, think about future-proofing. Pick a frame that lets you try new things. You might want to ride gravel one day or use wider tires for comfort. A frame with more tire clearance keeps your options open. 🚴‍♂️

Bottom Bracket

Types

When you look at titanium road bike frames, you’ll see a few bottom bracket types. The bottom bracket is the part that connects your crankset to the frame. It lets your pedals spin smoothly. You’ll find two main styles: threaded and press-fit.

Threaded bottom brackets are popular. You screw them into the frame. They’re easy to service and work with many cranksets. BSA (English threading) is the most common. T47 is a newer threaded style. It fits bigger spindles and is easy to maintain.
Press-fit bottom brackets slide into the frame without threads. Some titanium frames use PF30 or BB30 press-fit shells. These need special tools for installation and removal. Owners of Merlin titanium frames say press-fit bottom brackets can last over 20 years. Some riders switch to threaded types for easier maintenance.

Here’s a quick table to help you compare:

Type	Serviceability	Common Sizes	Notes
Threaded	Easy	BSA, T47	Fits many cranksets
Press-fit	Harder	PF30, BB30	Needs special tools

Tip: If you want simple repairs, pick a threaded bottom bracket. You’ll save time and effort.

Compatibility

You need to match your bottom bracket to your frame and crankset. This helps your bike run smoothly and keeps it quiet. If you get the wrong size, you might hear creaks or wear out your bearings fast.

Check the shell width and threading on your titanium frame. Make sure it matches your bottom bracket.
Look at spindle diameter. Common sizes are 24mm, 29mm, and 30mm. Your crankset and bottom bracket must fit together.
PF30 threaded bottom brackets use aluminum cups that thread together. This makes them stable and helps bearings last longer.
T47 threaded bottom brackets work with 30mm spindle cranks. They’re easy to service and fit well with titanium frames.
Wheels Manufacturing makes adapters for running 30mm spindle cranksets in BSA threaded frames. Always measure your spindle length for a good fit.
Shimano BB-UN300 is a simple, reliable option with sealed bearings.

Adapters and special models like SRAM DUB, RaceFace CINCH, and CeramicSpeed BSA help you match different cranksets to your frame. When you get the right fit, your bike feels smoother and lasts longer. Titanium frames need careful matching to avoid creaks and keep your ride strong for years. 🛠️

Note: Good compatibility means less noise, longer bearing life, and better performance. Always double-check before you buy new parts!

Cable Routing

External vs. Internal

When you look at a titanium road bike frame, you will see how the cables are placed. Some frames have cables on the outside. Others hide the cables inside the frame tubes. Each way has good and bad points.

External cable routing is simple and easy to use. You can see all the cables on the outside of the frame. This makes fixing and changing parts much easier. You do not need special tools or extra time. Bike shops like this style because it saves time and money. If you need to swap parts or fix a problem, you can do it fast. There is less chance of hurting your frame when you work on it. Many riders who want things to be easy and cheap pick external routing.

Internal cable routing hides the cables inside the frame tubes. This gives your bike a neat and modern look. Many people like the smooth lines and clean handlebars. If you use electronic shifting, like SRAM AXS or Shimano Di2, internal routing makes your bike look even better. Custom builders can cut hoses to the right length for a sharp finish.

But, internal routing can be hard to work with. It takes more time to set up and fix. Sometimes you might hear cables rattle inside the frame. Repairs cost more because the work is harder. You may need special parts, like special handlebars or stems. Some bike shops think internal routing is a pain.

Here’s a quick list to help you compare:

External Routing:
- Easy to fix and adjust
- Cheaper for parts and service
- Less chance of frame damage
Internal Routing:
- Looks neat and modern
- Works well for electronic shifting
- Harder and costs more to fix

Tip: If you want a bike that is easy to fix, pick external routing. If you want a clean look and do not mind extra work, internal routing could be good for you.

Electronic Shifting

Electronic shifting has changed how people think about cable routing. Systems like Shimano Di2 and SRAM AXS use wires or wireless signals instead of normal cables. If you pick electronic shifting, internal routing looks even better. You get a very clean handlebar area with almost no wires showing. The frame looks smooth and cool.

You will also see that electronic systems need less fixing. There are fewer moving parts to break. You do not have to worry about cable stretch or friction. Some frames have special holes just for electronic wires. This makes the setup even cleaner.

If you want a modern, high-performance bike, electronic shifting with internal routing gives you the best look and feel. If you want easy repairs and lower costs, you might stay with mechanical shifting and external routing. Think about what matters most to you before you choose.

Intended Use

Racing

If you love speed and want to race, a titanium road bike frame gives you a real edge. Builders use special tubing shapes, like swaged tubes, to make the frame stiff where you need it and flexible where you want comfort. You get a bike that feels quick and lively but never harsh. Titanium frames use smart designs—like different tube thicknesses and bends—to boost acceleration and handling. You will notice the bike responds fast when you sprint or take sharp turns.

Titanium frames are lighter than steel but still very strong.
They soak up road vibrations, so you feel less tired during long races.
The frame resists rust and damage, even if you ride in bad weather.
You get a smooth, springy ride that helps you stay fresh.

Many racers pick titanium because it balances speed, comfort, and toughness. While carbon may be lighter, titanium gives you a ride that lasts for years.

Endurance

Do you plan to ride for hours or tackle rough roads? Titanium frames shine in endurance cycling. The material’s natural flex smooths out bumps and cracks, so your body feels less stress. Some bikes, like the Litespeed Arenberg, use special titanium tubing and relaxed geometry to keep you comfortable and stable on long rides.

Riders often call titanium bikes “forever bikes” because they last so long. You can ride over rough pavement, and the frame keeps its smooth feel. Many cyclists switch to titanium for its comfort and durability, especially when they want to avoid fatigue on big rides. Wider tires fit easily, making your ride even softer.

Adventure

If you dream of exploring gravel roads or going bikepacking, titanium is a top pick. Adventure frames use wide tire clearance, extra mounts for bags and bottles, and strong tubing to handle heavy loads. Some frames even let you use dropper posts or suspension forks for more control.

Titanium’s strength means you can ride over rocks and roots without worry. The frame flexes just enough to act like a mini shock absorber, keeping you comfy on rough trails. It never rusts, so you can ride in rain, mud, or snow. Many adventure bikes have big triangles for frame bags, so you can carry all your gear with ease.

With a titanium frame, you get a bike that’s ready for any journey—no matter how far you go. 🚴‍♂️

Price of Titanium Bike Frames

Cost Factors

When you shop for a titanium road bike frame, you will notice the price can vary a lot. Some frames start around $1,100, while others can cost over $5,000. Why is there such a big range? Several things make titanium frames more expensive than other types.

Titanium itself costs more than steel or aluminum. The material is rare and hard to get.
Making a titanium frame takes special tools and skilled workers. Welding and shaping titanium is tricky.
Fewer companies make titanium frames, so there is less competition to lower prices.
The grade of titanium matters. Most frames use Grade 9 for a good mix of strength and comfort, but higher grades can cost more.
If you ever need repairs, you might pay more because not every shop can fix titanium.

Brand reputation also plays a big part. Well-known brands charge more for their name and quality. The design and features of the frame, like custom geometry or extra mounts, can add to the price. If you want a complete bike with high-end parts, the cost goes up even more.

Here’s a quick look at what you might pay:

Brand / Model	Approximate Price Range (USD)	Notes
Lynskey	Around $1100	Entry-level, US-made
Litespeed	About $2100	Well-known US brand
Seven, No. 22	$4000–$6000	Luxury, custom builds
Sage Titanium Barlow	$2000 (used) / $5000 (new)	High-end, price varies
State Bicycle Co.	$1299 (frame), $2499 (complete)	Affordable, entry to mid-range

Value

You might wonder if a titanium frame is worth the price. Titanium frames cost more than steel or aluminum, and they often match the price of carbon fiber. But you get a lot for your money.

Titanium frames last a long time. They do not rust, even if you ride in the rain. The ride feels smooth and comfortable, almost like high-end steel, but with less weight. You will not feel every bump in the road. Many riders say titanium bikes feel “springy” and responsive.

Steel frames are cheaper and easy to fix, but they are heavier. Aluminum frames are light and affordable, but they do not last as long. Carbon fiber frames are super light and stiff, great for racing, but they can be expensive and less comfy on rough roads.

If you want a bike that will last for years and keep looking good, titanium is a smart choice. You pay more at first, but you get a frame that stays strong and smooth for a very long time. For many riders, that peace of mind is worth every penny. 🚴‍♀️

Material Comparison

Titanium vs. Steel

You might wonder how titanium stacks up against steel. Both give you a smooth ride, but titanium takes comfort to the next level. You feel less road buzz, especially on long trips. Titanium frames are lighter than steel, thanks to their lower weight and better strength to weight ratio. Steel frames feel solid and reliable, but they add more weight to your bike.

Take a look at this table:

Property	Titanium Frame	Steel Frame
Comfort	Excellent vibration dampening	Smooth, classic ride
Weight	Lightweight	Heavier
Durability	Great corrosion resistance, but needs high-quality material	Very durable, easy to repair
Cost	Expensive	Affordable

Titanium resists rust, so you can ride in rain without worry. Steel needs more care to avoid corrosion. Repairing steel is easier, but titanium lasts longer if built well. You pay more for titanium because the material and labor cost much more.

If you want a bike that feels light, smooth, and stays strong for years, titanium is a smart pick. Steel works well if you want a classic feel and lower price.

Titanium vs. Carbon

Now, let’s talk about carbon. Carbon frames win when you want the lowest weight and maximum stiffness. You get fast acceleration and sharp handling. Titanium gives you comfort and durability. It absorbs bumps and keeps its shape over time. Carbon can crack if you crash or hit something hard. Titanium bends but rarely breaks.

You might choose titanium if you ride long distances or want a frame that lasts. Carbon is great for racing, but it needs careful handling. Titanium costs about the same as high-end carbon, but you get more reliability and less worry about damage.

Titanium is best for riders who want comfort, strength, and a frame that can handle rough roads. Carbon is perfect for racers who want the lightest bike.

Titanium vs. Aluminum

Aluminum frames are popular because they are cheap and light. You get a stiff ride, but you feel more bumps. Titanium gives you a smoother ride and better strength. Aluminum does not rust, but it can wear out faster than titanium. Titanium keeps its performance year after year.

Here are some scenarios where titanium shines:

You ride long distances and want comfort.
You need a bike for adventure or rough weather.
You want a frame that stays strong and looks good for years.

Aluminum works if you want a budget-friendly, lightweight bike for short rides. Titanium is the best choice when you value comfort, durability, and strength over price.

If you want a bike that feels great every time you ride, titanium is hard to beat. It gives you a unique mix of comfort, strength, and lasting value. 🚴‍♂️

When you pick titanium bike frames, look for good builders. Check if the frame is made well and shaped right. Think about how titanium feels on long rides. Titanium does not rust, so it lasts a long time. Make sure the frame fits your riding style and size. Use a checklist to help you choose. Look for strong welds and smart design. The frame should spread weight evenly. Titanium frames give you comfort and last for years. They also make your ride feel smooth. If you want a frame that stays strong and looks nice, titanium is a good choice.

FAQ

What makes titanium better than other frame materials?

Titanium gives you a smooth ride and lasts for years. You do not have to worry about rust. The frame feels light but stays strong. Many riders say titanium feels more comfortable than steel or aluminum.

Can you use a titanium frame for gravel or adventure riding?

Yes, you can! Many titanium frames fit wide tires and have mounts for bags. You get a bike that works well on rough roads, gravel, and long trips. Titanium handles bumps and keeps you comfortable.

Is it hard to repair a titanium bike frame?

You need a skilled worker to fix titanium. Most shops can repair small dents or cracks. The frame stays strong after repairs. You do not need to replace the whole frame if something goes wrong.

How do you clean and care for a titanium frame?

You can wipe your frame with a soft cloth and water. Titanium does not rust, so you do not need special sprays. If you ride in mud, just rinse and dry your bike. Your frame will look good for years.
