Aluminum bike frame thickness typically ranges between 0.8mm and 2.0mm. This aluminum bike frame thickness is crucial for balancing the frame’s weight and strength. Thicker aluminum bike frame thickness provides greater strength, helping to absorb shocks and increase durability. However, a thicker aluminum bike frame thickness also adds more weight to the bike. Conversely, a thinner aluminum bike frame thickness results in a lighter bike but may compromise strength. Engineers carefully analyze aluminum bike frame thickness to design the best bike frames that perform optimally in various conditions.
Key Takeaways
Aluminum bike frame thickness is usually between 0.8mm and 2.2mm. This helps balance strength and weight.
Thicker tubes make the frame stronger and last longer. However, they also add weight and can make the ride feel stiff.
Butted tubes have different thicknesses. This adds strength where it is needed while keeping the frame light.
The 6061 and 7005 aluminum alloys have different strength and durability. This affects how the bike performs.
Picking the right thickness depends on how you ride. Thinner tubes are better for speed. Thicker tubes are better for comfort and durability.
Aluminum Alloys
For aluminum bike frames, two alloys are important: 6061 and 7005. Each alloy has special features that change how well your bike frame works and lasts.
Properties of 6061 Aluminum
6061 aluminum alloy is one of the most popular materials for bike frames. It has a good mix of strength, weight, and resistance to rust. Here are some main features:
Property/Process | Description/Value | Relevance to Bicycle Frames |
|---|---|---|
~310 MPa | Gives strength to the frame | |
Yield Strength | ~275 MPa | Helps the frame avoid permanent bending |
Alloy Composition | Mg (0.8-1.2%), Si (0.4-0.6%), Cu (0.15-0.4%), Fe (up to 0.7%) | Affects how the frame works and how well it can be welded |
Heat Treatment Steps | 1) Heat to 530°C | Makes the alloy stronger through heat treatment |
2) Quick water cooling | Keeps the alloying elements in place | |
3) Aging at ~180°C for 8 hours | Strengthens the alloy, creating T6 temper |
The heat treatment is very important for making the mechanical features that allow 6061-T6 aluminum alloy to be used for bike frames. This alloy has a good balance of strength, weldability, and resistance to wear, which is why many manufacturers like it.
Properties of 7005 Aluminum
7005 aluminum alloy is another strong option for bike frames. It is known for being stronger and more durable than 6061. Here are some key traits:
Property | Value | Unit |
|---|---|---|
Ultimate Tensile Strength | 350 | MPa |
Density | 2.78 | g/cm³ |
7005-T6 aluminum alloy has a tensile strength of about 51,000 psi (~351 MPa), which is stronger than 6061-T6 aluminum alloy at around 45,000 psi.
The yield strength of 7005-T6 is about 42,000 psi, a bit higher than 6061-T6’s 40,000 psi.
7005 alloy is known to be stronger and more durable for bike frames, giving better protection in crashes.
Even though 7005 is harder to shape and make than 6061, it does not need costly heat treatment, as it can cool in the air.
These features make 7005 aluminum alloy a great choice for high-performance bike frames, especially for mountain biking where strength and durability are very important.
Aluminum Bike Frame Thickness

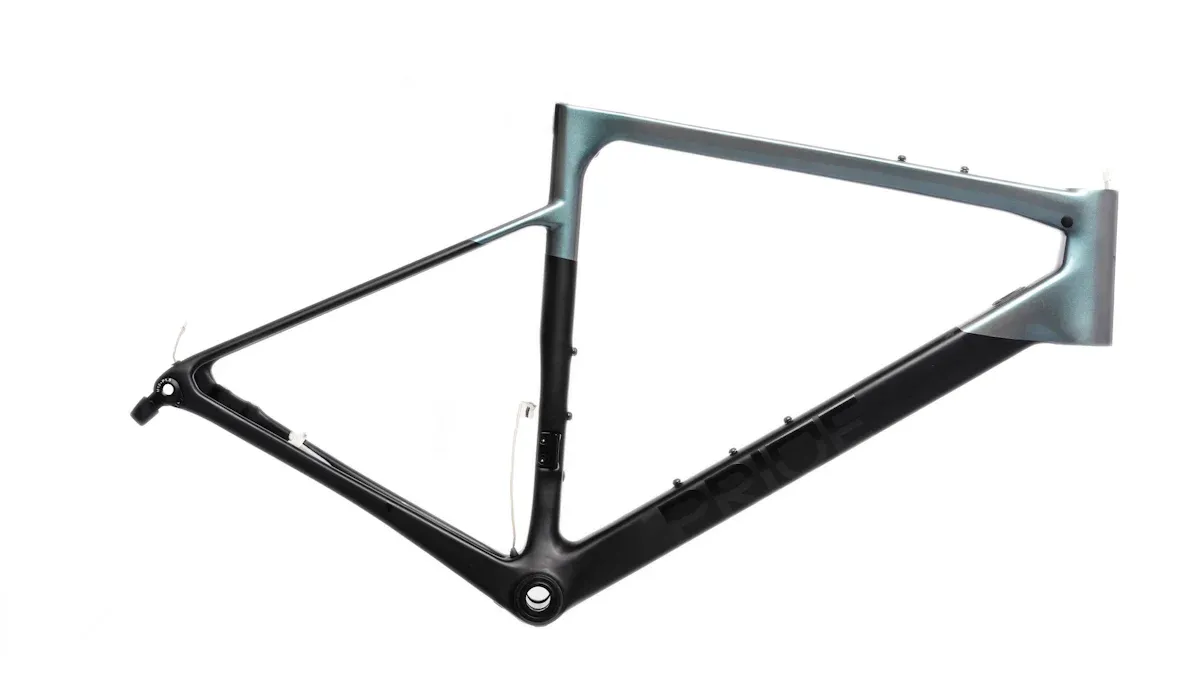

Standard Thickness Ranges
When picking an aluminum bike frame, knowing the standard thickness ranges is important. Most makers list wall thicknesses for aluminum bike frame tubes between 0.8mm and 2.2mm. Here are some common thicknesses you might see:
Down tubes: 1.35mm to 2.0mm
Seat tubes: 1.5mm to 2.2mm
Top tubes: 0.7mm to 2.0mm
Seat stays and chain stays: 1.0mm to 1.6mm
Many frames use butted tubes. These have different thicknesses along their length. For example, you might find profiles like 2.0/1.1/1.4mm or 1.9/1.3mm. This design helps improve strength and weight balance.
Thicker vs. Thinner Tubes
Choosing thicker or thinner tubes changes your bike’s performance. Thicker tubes usually give more strength and durability, especially at joints. But they also add weight. Thinner tubes lower weight but may lose strength and durability if not designed well.
Wall Thickness Variation | Performance Impact | |
|---|---|---|
Straight Gauge | Uniform thickness | Consistent strength but heavier overall. |
Single Butted | Thicker at one end | Strength focused at specific high-stress points; reduces weight in other areas. |
Double Butted | Thicker at both ends | Increased strength at two junctions; weight reduction in the middle. |
Triple Butted | Thicker at ends, thinnest in middle | Optimizes strength-to-weight ratio; lightest option but more costly to manufacture. |
You should think about how tube thickness affects ride quality. Thicker tubes make the bike stiffer, which can feel harsher. Thinner walls may give a more comfortable ride but need careful design to keep strength. Makers often change tube thickness and shape to balance these factors, ensuring you get the best performance from your aluminum bike frame.
Thickness Impact
Weight Considerations
When thinking about aluminum bike frame thickness, weight is very important. Thicker tubes usually make the frame heavier. But they also give more strength and durability. There is a balance between weight and performance. For example, tests in labs show that different tube thicknesses can cause big weight changes.
Here’s how different tube types affect frame weight:
Tube Type | Outer Diameter (mm) | Wall Thickness (mm) | Length Increase per Size (mm) | Weight Increase per Size (g) |
|---|---|---|---|---|
Head Tube (HT) | 50.0 | 3.5 | +17 | 24 |
Seat Tube (ST) | 35.0 | 1.5 | +20 | 9 |
Down Tube (DT) | 42.0 | 1.5 | +11 | 6 |
Top Tube (TT) | 35.0 | 1.4 | +9 | 4 |
Seat Stays (SS) | 19.0 | 1.2 | +15 | 5 |
The total weight increase for each frame size is about 48 grams (around 52 grams with paint). This shows how aluminum bike frame thickness affects frame weight. You can make a lighter bike frame by choosing thinner tubes, but be careful. Thinner tubes might lose strength and durability, especially when under pressure.
Strength and Rigidity
The thickness of your bike frame tubes is also very important for strength and rigidity. Thicker walls usually make the bike stiffer and better at resisting dents. This means your bike can handle impacts and stress better during rides. However, this extra strength adds more weight.
Engineering studies show that tube thickness affects the strength and rigidity of aluminum bike frames. The moment of inertia, which controls bending stiffness, depends on the outer and inner diameters of the tubes. For instance, making the tube thickness 10% thinner can cause more bending under load, which means less stiffness.
You should also think about how different frame tubes affect the overall frame’s flexibility. Thicker walls and larger diameters increase stiffness and strength but also add weight. On the other hand, thinner walls lower weight but might reduce rigidity and dent resistance.
Tip: When picking a frame, consider how stiffness impacts ride quality. A stiffer frame can feel rougher, while a more flexible frame might give a comfy ride. Manufacturers often change tube thickness and shape to balance these things, making sure you get the best performance from your aluminum bike frame.
Manufacturing Techniques
Welding and Joining Methods
Welding and joining methods are very important for the thickness of aluminum bike frame tubes. Aluminum is not as flexible and strong as steel. This affects how thick the bike frame tubes need to be. Designers often use bigger tubes with thicker walls at important spots, like near joints. Butted tubes have different wall thicknesses. They can be thicker in high-stress areas while staying lighter in other parts. This design helps balance strength and weight.
TIG welding is the best way to join aluminum bike frames. It gives better heat control, which helps weld thinner tubes well. MIG welding makes too much heat and can hurt thin-walled tubes. This limits how thin you can weld safely. Other methods like brazing can also work well. They do not melt the base metal, so thinner or different tubes can be joined without heat problems from welding.
Butted Tubing Techniques
Butted tubing techniques greatly affect the thickness of aluminum bike frames. These methods change the wall thickness to put material where it is needed most. Here’s a summary of common butting methods:
Manufacturing Technique | Description | Purpose/Effect |
|---|---|---|
Butting (general) | Changes tube wall thickness to add strength where needed | Improves strength-to-weight ratio by reinforcing stressed areas |
Internal Butting | Thickness change hidden inside the tube | Keeps strength without visible changes |
External Butting | Adds material on the outside of the tube (not used much now) | Increases strength but is less common due to weight and looks |
Double Butting | Extra material inside at each tube end, thinner middle section | Lowers weight while reinforcing stress points |
Triple Butting | Three-stage thickness change creating a terraced inside tube | More weight savings with better strength distribution |
These techniques help makers create frames that are both light and strong. By changing tube thickness wisely, you can find a balance between performance and durability, making your bike good for different riding conditions.
Real-World Applications
Road vs. Mountain Bikes
When picking between road and mountain bikes, think about how aluminum frame thickness affects how they perform. Fast aluminum bike frames usually have thinner, butted tubes. This design makes them stiffer and lighter, which is important for speed. But this can make the ride feel rougher. You might get tired more quickly during long races.
On the other hand, casual aluminum frames often use thicker tubing. This design makes the ride more comfortable and durable, even if it adds some weight. Makers focus on ride quality for people who ride for fun. They often use the butting process to balance strength and weight well. Thicker tubes give a smoother ride, making them great for relaxed outings.
Custom Frame Builds
Custom frame builds let you adjust your bike to fit your needs. You can pick the aluminum thickness based on how you ride. If you like racing, choose thinner tubes for better performance. This choice gives you a stiffer frame that reacts quickly to your movements.
But if you enjoy long rides or off-road trips, thicker tubes might be better. They provide more comfort and durability, improving your overall experience. Custom builders often think about things like shape and tube thickness to make a bike that matches your personal style.
In short, the best thickness for aluminum bike frames usually goes from 0.8mm to 2.2mm. This range helps balance weight and strength, making sure the bike lasts without losing performance.
Thicker tubes support important spots like chainstays and bottom brackets, making them stronger.
Different wall thickness, often found in double-butted tubes, improves strength while keeping weight low.
When picking a frame, think about how you ride. Whether you want speed or comfort, the right thickness can really change how your bike feels.
Keep in mind, a good frame design can really improve your cycling experience!
FAQ
What is the best aluminum thickness for a bike frame?
The best aluminum thickness for a bike frame usually goes from 0.8mm to 2.2mm. This range helps balance weight and strength. It makes sure the bike is strong and lasts without losing performance.
How does tube thickness affect ride quality?
Thicker tubes make the bike stiffer, which can feel rough. Thinner tubes can give a more comfy ride but might lose strength. Makers often find a balance between these things for the best performance.
Can I customize the thickness of my bike frame?
Yes, you can change the thickness of your bike frame. Custom builders let you pick tube thickness based on how you ride. You can choose what matters more, speed or comfort.
What are butted tubes?
Butted tubes have different wall thicknesses along their length. They are thicker where stress happens and thinner in less important spots. This design makes them stronger while keeping weight down.
Why is aluminum alloy important for bike frames?
Aluminum alloys, like 6061 and 7005, have different strengths and weights. Picking the right alloy changes how your bike performs, lasts, and feels when you ride.
