In cycling, the type of frame matters a lot. A butted bike frame has benefits. It has a better strength-to-weight ratio. This means it is strong but not heavy. It also gives a smoother ride. Plus, it lasts longer. Knowing these benefits helps you choose your next bike wisely.
Key Takeaways
Butted bike frames are stronger for their weight. This makes them lighter and easier to ride, especially uphill.
The special design of butted frames helps with comfort. They absorb bumps, giving you a smoother ride on long trips.
When picking a bike, think about how you ride and your budget. Butted frames are great for performance. Traditional frames are known for being reliable.

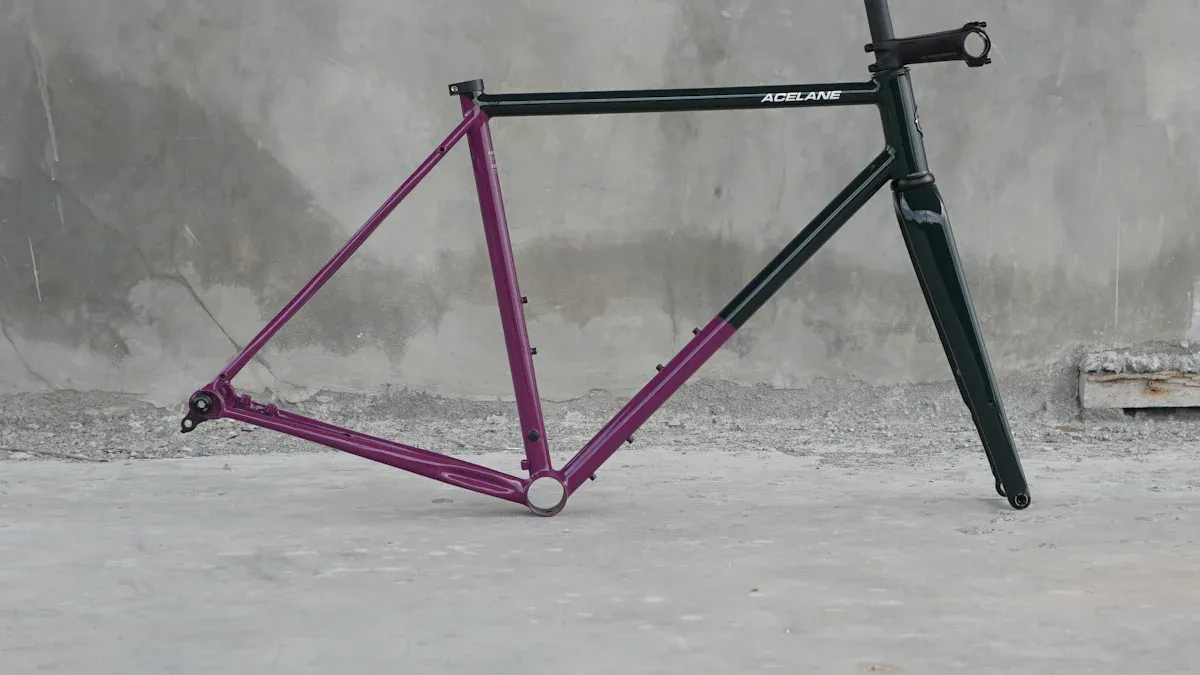

Butted Bike Frames
Characteristics
Butted bike frames are special because of their design. They use butted tubing. This means the thickness of the tube walls changes. The ends are thicker, and the middle is thinner. This design has many benefits:
Weight Reduction: Thinner areas use less material. This makes the frame lighter. A lighter frame helps you go faster and climb easier.
Enhanced Comfort: The thinner middle parts help absorb bumps. This makes your ride smoother. You will feel more energy, especially on long trips.
Increased Strength: The thicker ends make the frame stronger. This helps at important stress points. It lowers the chance of breaking the frame. This is important for riders who push their bikes hard.
Here’s a quick overview of the defining features of butted bike frames:
Feature | Description |
|---|---|
Wall Thickness Variation | Butted tubes have different wall thickness, usually double or triple-butted, with a thinner middle section. |
Ride Comfort | Thinner sections help absorb bumps, while thicker ends give stiffness for climbing and sprinting. |
Weight Reduction | Makes the frame lighter by using less material in low-stress areas. |
Strength Enhancement | Boosts strength at joints without adding weight, lowering the chance of frame failure. |
Proprietary Tubing | Ritchey Logic uses special triple-butted tubing for the best performance and ride quality. |
Design Evolution | Ongoing improvements in tubing design for better power transfer and ride feel. |
Manufacturing Process
The making of butted bike frames has important steps for quality. Here’s how it usually goes:
Raw materials, like frame tubes and parts, arrive.
Tubes are cut to shape the ends for joining.
A jig holds the tubes in place for putting together.
Joints are tack welded and checked for straightness.
Joints are brazed in a certain order, checking alignment after each step.
Extra parts like shock mounts and gussets are added and brazed.
Final cleaning is done to ensure everything fits well.
The butting process happens in-house. This gives precise control over how much material is removed. This method helps move stress away from welds, making the frame stronger. The unique butting method creates a light but strong frame, improving the strength-to-weight ratio.
New materials, like butted titanium tubes, have made these frames even better. Innovations like the Columbus XCR seamless tube set and Reynolds’ martensitic-aging stainless steel alloy allow for very light and strong bike frames.

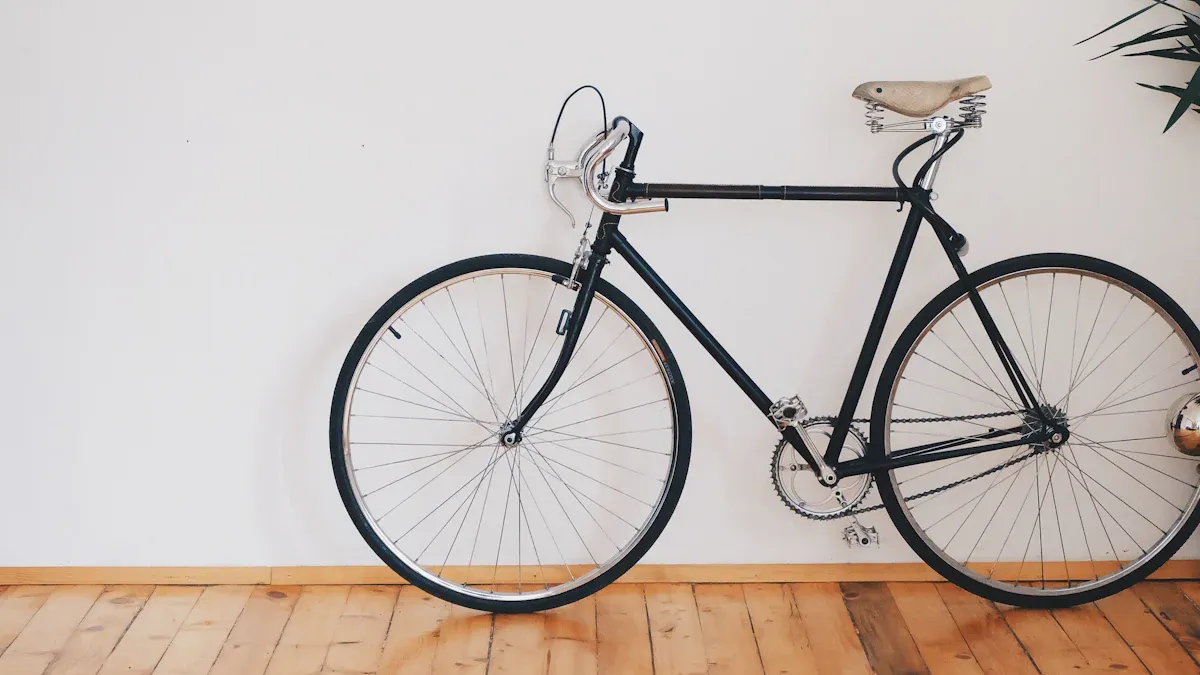

Traditional Frames
Traditional bike frames have been around for a long time. They usually have a simple design and are made from materials like steel, aluminum, titanium, or carbon fiber. Each material has special qualities that change how the bike performs and feels.
Characteristics
Here are some key features of traditional bike frames:
Characteristic | Description |
|---|---|
Geometry | Traditional bike frames often have a relaxed seat-tube and head-tube angle for comfort. |
Wheelbase | Usually long, between 40 to 57 inches, which helps with stability and comfort. |
Common materials are steel, aluminum, titanium, and carbon fiber, each with special qualities. | |
Stiffness | Affects how comfortable the ride is and how well power is transferred, based on frame shape. |
Yield Strength | Shows how much force is needed to bend the material, affecting safety in crashes. |
Elongation | Tells how much the material can stretch before it cracks. |
Fatigue Limit | Shows how durable the frame is when facing repeated stress from riding. |
Traditional frames use straight tubes that are the same thickness all over. This can make the ride feel stiff, which might be uncomfortable on long trips. Butted bike frames have a different design. Their tube walls are thicker at the ends to handle stress, while the middle is thinner. This helps reduce weight while keeping strength.
Manufacturing Process
Making traditional bike frames involves several important steps:
Design
Mold Making
Material Preparation
Frame Production
Bike Parts Production
Paint and Finish
Testing and Quality Control
Assembly
Packaging and Shipping
Innovation and R&D
Customization
During production, manufacturers cut and shape the materials to build the frame. They then weld the pieces together, making sure they meet quality standards. After assembly, the frames are tested to ensure they can handle the stresses of riding.
Traditional bike frames, especially those made from steel and titanium, are good at resisting wear. These materials have set limits for fatigue, making them less likely to break under repeated small stresses. However, aluminum does not have a specific endurance limit, so it can fail more easily over time. So, while traditional metal frames are built to last, the choice of material greatly affects their strength and lifespan.
Performance and Cost Comparison
Ride Quality
Comfort is important when you ride a bike. Butted bike frames are great for ride quality because of their special design. The different wall thickness in butted tubing helps absorb vibrations better. This means you can have a smoother ride, especially on long trips.
Vertical Frame Compliance: This shows how well a frame absorbs bumps. Higher compliance means more comfort. For example, the Softride Rocket R1 Aluminum frame has a compliance of 1.4 inches, which gives great comfort. On the other hand, the Cannondale CAAD 3 Oversized Aluminum frame has a compliance of only 0.049 inches, making it less comfy on long rides.
Balance Between Stiffness and Comfort: Butted frames find a good balance. The thicker ends give stiffness for climbing and sprinting. The thinner middle parts help absorb bumps. This design helps you keep your energy during long rides.
Weight and Cost
Weight is very important for your cycling experience. Butted bike frames are usually lighter than traditional frames. A heavy steel frame can weigh about 7 pounds, while a well-made butted frame can be as light as 4 pounds.
Weight Differences: Higher grades of steel, like Reynolds 853, can weigh less than chromoly because of thinner tubes while still being strong. You can see a weight difference of about a pound between similar bike frames. Things like alloy choices, butting, and tube shapes affect this difference.
Cost Implications: Making butted tubing is more complicated. This raises the cost compared to traditional straight gauge tubing. While butted tubing is lighter and keeps strength, the higher production costs might turn some buyers away. However, many cyclists believe that the benefits of less weight and better performance make the extra cost worth it.
When you pick a butted bike frame or a traditional frame, think about these important points:
Butted frames make your ride more comfortable with different wall thicknesses.
They are lighter but still strong in important spots.
Thicker ends help with climbing, and thinner parts make the ride comfy.
Keep these things in mind to choose the best bike for you! 🚴♂️
FAQ
What is the main advantage of butted bike frames?
Butted bike frames are lighter and more comfortable. They have a better strength-to-weight ratio, which helps on long rides.
Are traditional frames still a good choice?
Yes, traditional frames are strong and comfy. They are great for casual riders or those who like classic designs.
How do I choose between butted and traditional frames?
Think about your riding style, budget, and comfort needs. Butted frames are better for performance. Traditional frames give you reliability and good value.
