You want more speed from your aero bike frame, right? Let’s talk about how you can get it. Aerodynamics matter a lot, but did you know your body position affects speed even more than the bike itself? Check out this table from recent cycling studies:
Component | |
|---|---|
Rider’s Body & Positioning | 64 – 82 |
Frame (part of bike) | 4 – 9 |
So, when you tuck in your elbows or use an aero helmet, you cut down on drag and pick up speed. Your aero bike frame still plays a role, but how you ride makes the biggest difference in aerodynamics.
Key Takeaways
How you sit on your bike matters more than the frame. Try to ride with your elbows bent. Keep your back flat. Hold your arms close together. This helps you go faster by cutting drag.
Clean your bike often. Focus on the frame and front part. This lowers air resistance. It also helps air move smoothly over your bike.
Put cables inside the frame. Make sure your cockpit is neat. This lowers drag. It also helps your bike move through air better.
Pick wheels with deep sections. Use tires that are the right width. Make sure the pressure is correct. This helps you go fast. It also keeps you comfortable and lowers rolling resistance.
Use aero bars and aero helmets. Wear tight clothes. This lowers drag. It helps you go faster and stay comfortable.
Clean for aerodynamics
Frame and component care
You want your aero bike to slice through the air, right? Keeping your frame and components spotless helps you do just that. Dirt and grime add extra air resistance and increase aerodynamic drag. When you clean your bike, you make sure the surfaces stay smooth, which helps air flow better and boosts aerodynamics.
Start with a pre-rinse to wash away loose dirt. Use a high-quality soap like SILCA Ultimate Bike Wash. This soap protects your frame’s finish and leaves no residue. Let the suds sit for a few minutes, then rinse everything off. Scrub away stubborn spots like dried gels or sweat. Finish with a top-to-bottom rinse to clear away any leftover soap. If you have metal parts, use compressed air to dry them and prevent corrosion.
For carbon frames, pick wax-based polishes without abrasives, such as Motorex Bike Shine or Storck’s Carbo’Coat Polish. These products keep your frame shiny and smooth, which helps reduce drag. If you spot sticky stuff like tree sap, use detailing clay before polishing. Stay away from harsh cleaners like dish soap or Simple Green. They can damage your bike and make it less aerodynamic.
Tip: Sweat and salt can cause corrosion, even on carbon frames. Rinse your bike often and use rust inhibitors like WD-40 inside exposed tubes. You can also seal around the stem with clear silicone-rubber caulk to keep sweat out.
Front end cleaning
The front end of your bike faces the most air resistance. If you keep it clean, you lower aerodynamic drag and help air move smoothly over your bike. Research from Cervelo shows that a spotless front brake and fork setup keeps airflow steady and reduces drag. Even small bits of dirt or clutter can mess up the aerodynamics and slow you down.
Wind tunnel tests prove that cleaning and organizing the handlebars, brake area, and even luggage can cut drag.
Adding front fenders with about 135 degrees of coverage can lower the drag coefficient by 4.5%. This means you get real speed gains without making your bike bulky.
A clean front end means less turbulence and better aerodynamics. You’ll feel the difference when you ride, especially at higher speeds.
Integrated cable routing
Hidden cables
You want your bike to look fast and feel fast. Hiding your cables inside the frame is one of the best ways to do this. When you tuck away those brake and shift cables, you cut down on the messy airflow that creates extra drag. Internal cable routing keeps the front of your bike smooth, which helps air move past with less resistance. This means you lose less speed to aerodynamic drag.
Check out this table to see how much power you can save by hiding your cables:
Speed (mph / km/h) | Power Savings (Watts) | Extra Drag from 10 cm Exposed Cable (Watts) |
|---|---|---|
~0.5 W | N/A | |
28 mph / 45 km/h | ~2 W | ~1 W |
Even a short piece of exposed cable can add about 1 watt of drag at higher speeds. That may not sound like much, but over a long ride, it adds up. Bikes like the Shadow Frameset and DARE’s TSIC system hide all the cables inside. This design keeps the airflow clean and reduces turbulence around the frame. You get a sleeker look and a real boost in speed.
Tip: If you want the most aerodynamic gains, look for bikes with narrow head tubes and fully hidden cables. This combo cuts down on frontal area and keeps aerodynamic drag as low as possible.
Tidy cockpit
A clean cockpit does more than just look good. It helps you ride faster by reducing drag. When you organize your handlebars, stem, and accessories, you make it easier for air to flow smoothly. Professional bike fitters use special tools to help riders set up their cockpit for the least aerodynamic drag.
Here are some easy ways to tidy up your cockpit:
Tuck wires under the stem so they don’t dangle in the wind.
Use aero cockpit parts, like longer arm pads, for comfort and less drag.
Pick integrated or mono post cockpits to keep things neat.
Ask a bike fitter to help you balance comfort and aerodynamic drag.
A tidy cockpit means less clutter and less turbulence. You’ll notice the difference in your speed, especially when you push hard on flat roads. Every little bit helps when you want to beat aerodynamic drag and ride faster.
Aero bike frame setup
Frame geometry
When you want to make your aero bike frame faster, start by looking at the frame geometry. The shape and angles of your frame decide how you sit on the bike and how air moves around you. Aero bike frames use aggressive geometry. You get a low head tube and a longer top tube. This setup stretches you out and helps you lower your frontal surface area. When you ride in this position, you cut through the wind with less drag.
Aerodynamics matter more than weight on flat and rolling roads. If you improve your bike frame aerodynamics by just 5%, you can save over three minutes on a long ride. That’s a huge gain compared to losing weight, which only saves seconds. Aero bike frames also use special tube shapes and hidden cables. These features help you shrink your frontal area and keep airflow smooth. You go faster because less air pushes against you.
Tip: If you want to hold an aero position, work on your flexibility and core strength. This helps you stay low and comfortable for longer rides.
Component alignment
You can boost your aero bike frame’s speed by making sure every part lines up just right. Misaligned handlebars, wheels, or seatposts can mess up airflow and add drag. When you align your components, you keep your frontal surface area as small as possible. This means better aerodynamics and more speed.
Here’s how you can check and adjust your setup:
Stand in front of your bike and look at the handlebars and wheels. They should line up straight.
Make sure your seatpost is centered and not tilted to one side.
Check that your aero bars are level and close together. This helps with frontal area reduction.
Tighten all bolts so nothing moves during your ride.
When you set up your aero bike frame with care, you get the most out of your bike frame aerodynamics. You ride faster and use less energy to keep your speed up.
Aero wheels and tires
Wheel profile
You want to go faster, so you need to think about your wheel profile. The shape and depth of your wheels change how air moves around your bike. Deep-section wheels help you cut through the wind. They lower aerodynamic drag and give you a speed boost, especially on flat roads. If you use deep wheels, you get less turbulence and a smoother ride at high speeds.
Check out this table to see how different wheel profiles affect drag and speed:
Wheel Profile / Condition | Aerodynamic Drag Contribution | Drag Area (C_D A) | Rotational Moment Area (C_M A) | Effect on Overall Bike Speed |
|---|---|---|---|---|
Spoked Wheel (Isolated, Static) | Baseline drag area | 0.231 m² ± 0.001 | Not measured in WT, included in CFD | Moderate drag, baseline rotational moment |
Spoked Wheel (Isolated, Rotating) | Drag area 2.2% lower than static; rotational moment adds to total drag | Slightly lower C_D A than static | Increases total drag by 38.9% compared to static | Increased total aerodynamic drag, speed drops |
Spoked Wheel (Non-Isolated, Static) | Drag area 8.8% lower than isolated static | Lower than isolated static | 7.7% lower C_M A than isolated | Frame interaction reduces drag, speed improves |
Spoked Wheel (Non-Isolated, Rotating) | Drag area 12.9% lower than isolated rotating | Lower than isolated rotating | Lower C_M A than isolated rotating | Combined effects reduce drag, speed increases |
Tri-Spoke and Disc Wheels | Not yet fully studied | N/A | N/A | Potential for different aerodynamic impacts |
Wheels can add up to 15% of your total aerodynamic drag. If you pick the right profile, you get a real advantage. Deep-section wheels work best when you want to ride fast and keep drag low.
Tip: Use deep wheels for time trials or flat races. You’ll notice the speed difference right away.
Tire width and pressure
Your tire choice matters just as much as your wheels. If you want to minimize rolling resistance, you need to match your tire width to your rim. Wider tires, when paired with the right rim, create a smooth shape that helps air flow better. The “105% Rule” says your rim should be at least 105% as wide as your tire. This keeps airflow smooth and reduces drag.

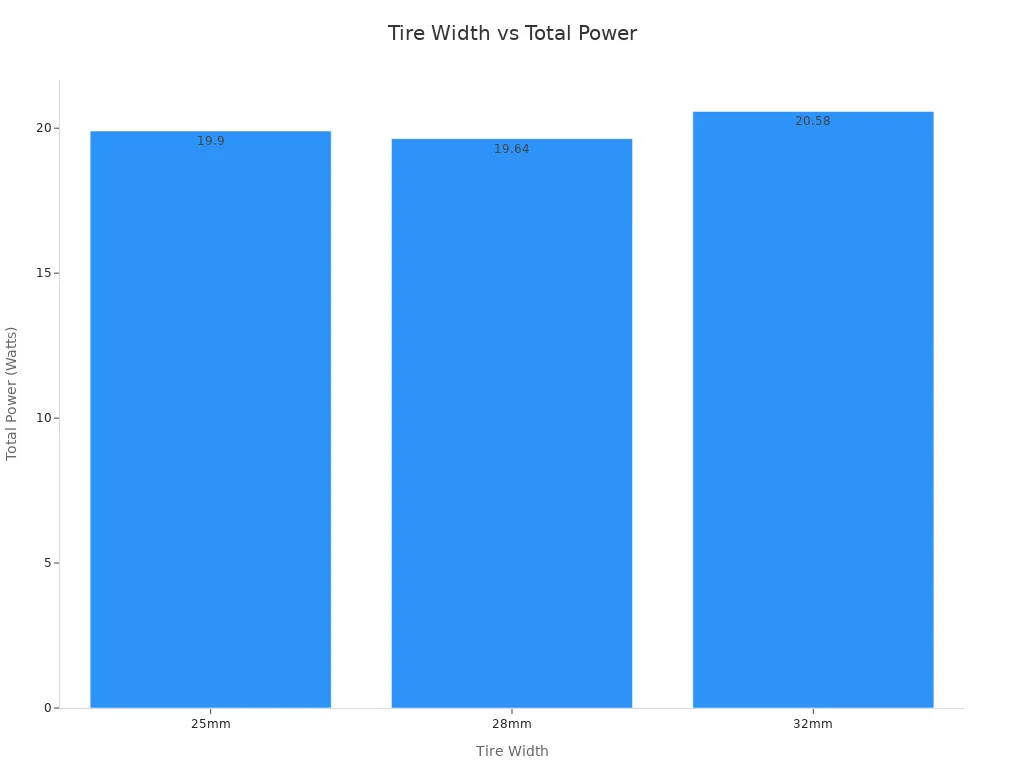

Here’s a table showing how tire width affects total power:
Tire Width | Total Power (Watts) |
|---|---|
25mm | 19.9 |
28mm | 19.64 |
32mm | 20.58 |
You get the best balance with 28mm tires. They roll fast and keep your bike aerodynamic. If you go too wide, you add drag and lose speed. If you go too narrow, you miss out on comfort and grip.
Lower tire pressures help your tires absorb bumps and keep rolling resistance low.
Too little pressure makes your tires squishy and slow. You risk pinch flats.
Too much pressure makes your ride harsh and increases rolling resistance.
Tubeless tires let you run lower pressures for more comfort and speed.
EF Pro Cycling riders use 30mm tubeless tires on wide rims. They ride at lower pressures and stay fast. You can do the same. Just make sure your tire and rim match well.
Note: Always check your tire pressure before you ride. The right pressure keeps you safe and helps you go faster.
Minimize accessories
Streamlined setup
You want your aero bike to look fast and feel fast. A streamlined setup helps you get there. When you ride, every little thing on your bike can catch the wind and slow you down. Professional cyclists know this, so they keep their bikes as clean as possible. They remove anything that does not help them go faster.
Light mounts often come off before a race.
Decorative rubber duckies and other fun items? Those stay at home.
Bar bags and bulky pouches add drag, so pros leave them behind.
You can also tidy up your cables with zip ties. Smooth bar tape gives your handlebars a clean look and helps air move over them. When you keep your cockpit simple, you make your bike more aerodynamic. You do not need to strip your bike bare, but every bit of clutter you remove helps you ride faster.
Tip: Before your next ride, take a look at your handlebars and frame. Ask yourself, “Do I really need this?” If not, take it off. You will notice the difference.
Reduce clutter
Clutter on your bike does more than just look messy. It slows you down. Wind tunnel tests and computer models show that a cluttered cockpit and frame create more drag. When you use new cable routing and keep your handlebars and frame clean, you get a sleek profile. This shape helps air move smoothly around your bike, even when the wind hits from the side.
AeroSystem Shaping technology proves that less clutter means better aerodynamics. You do not need fancy gear to see results. Just keep your setup simple and organized. You will ride faster and use less energy. Small changes add up to big gains on the road.
Rider positioning
You can have the fastest aero bike frame, but your rider positioning makes the biggest difference in speed. Most of the drag you face comes from your body position, not the bike. If you want to cut air resistance and ride faster, you need to focus on how you sit and tuck on the bike.
Bent elbows and flat back
When you bend your elbows and keep your back flat, you shrink your frontal area. This simple tuck helps you slice through the wind. Bending your elbows to about 90 degrees brings your arms closer together, which lowers drag. A flat back lets air flow smoothly over your body, reducing air resistance by over 25%. You also feel more comfortable and less tired on long rides because bent elbows absorb bumps and take pressure off your arms.
Bent elbows help you hold your tuck longer without getting sore.
A flat back keeps your head and shoulders low, making you more aerodynamic.
This body position lets you ride faster without extra effort.
Tip: Practice riding with bent elbows and a flat back on your training rides. Start with short efforts and build up as you get stronger.
Narrow arm position
Bringing your arms closer together is another key to better rider positioning. When you tuck your elbows in, you make your body narrower. This reduces drag and helps you go faster. Studies show that keeping your arms shoulder-width or even closer can lower your drag-area by about 3%. Using aero bars or adjusting your handlebar pads can help you find the right position.
Keep your forearms parallel to the ground or angle them slightly upward, like a “praying mantis.”
Rest your elbows close together on the bars to create a tight tuck.
Try raising your hands a little to close the gap between your chin and hands, which smooths airflow.
A narrow arm position, combined with a flat back, gives you a powerful tuck. You cut through the wind, lower air resistance, and save energy for the final sprint. Remember, small changes in your position can lead to big gains in speed.
Optimize aerodynamics with handlebars
Aero bars
You want to go faster, right? Aero bars help you do just that. When you add aero bars to your bike, you can tuck your body into a narrow, forward position. This position cuts down on wind resistance and helps you optimize aerodynamics. Most riders see their speed jump by 1 to 2 mph with aero bars, even if they keep the same effort. Over a 40 km ride, you can save about 1 minute and 40 seconds. That’s a big deal if you race or just want to beat your friends.
Aero bars also make long rides more comfortable. They let you rest your weight on your elbows, so your hands and wrists don’t get tired. You use less energy, which means you can ride longer and save strength for the finish. If you want to switch between road and triathlon setups, quick-release aero bars make it easy. You don’t need special tools.
Here’s what you get with aero bars:
More speed from less drag
Better comfort for your hands and wrists
Energy savings for longer rides
Easy switching with quick-release options
Tip: Always get your aero bars fitted by a pro or take time to adjust them yourself. Practice riding in the aero position before your next race. You’ll feel the difference in speed and comfort.
Handlebar rotation
Handlebar rotation might sound small, but it makes a big difference. When you rotate your handlebars just right, your wrists stay comfortable and you avoid numbness on long rides. You want your hands to rest in a natural position. This helps you hold an aerodynamic tuck for longer, which means you can optimize aerodynamics without hurting your wrists.
Lower handlebars push you into a forward-leaning position. You get more speed because you shrink your frontal area. Higher handlebars feel more relaxed and work better for easy rides. Adjusting the angle and height of your bars helps you find the best mix of comfort and speed.
Here’s a quick table to help you decide:
Handlebar Position | Comfort Level | Aerodynamic Benefit | Best For |
|---|---|---|---|
Lower | Medium | High | Racing, fast rides |
Higher | High | Medium | Leisure, long rides |
Neutral Rotation | High | Medium-High | All-around |
Note: Try different bar angles and hood placements. Listen to your body. If your wrists feel good, you’ll stay in your aero position longer and ride faster.
Hydration and storage
Aero bottle cages
You want to stay hydrated, but you also want to keep your bike fast. Standard round bottles on down tube cages add a lot of drag—usually 40 to 50 grams. Aero bottles like the XLAB Aero TT cut that drag in half. If you use the XLAB Torpedo system, you drop drag even more, saving up to 142 seconds in a full race at 20-25 mph. That’s a big difference when every second counts.
Bottle Type | Drag (grams) | Drag Reduction Compared to Standard | Race Time Savings (full distance) |
|---|---|---|---|
Standard Bottle | 15.6 – 40-50 | N/A | N/A |
XLAB Aero TT | 20-25 | ~50% less drag on down tube | 51 to 64 seconds |
XLAB Torpedo | 5.5 | 64.7% less drag | 112 to 142 seconds |
Placing bottles between your arms (BTA) also helps. The UnderCup BTA System fits under your arm cups and fills the gap between your arms and torso. This setup reduces turbulence and drag, giving you easy access to hydration without breaking your aero position. Some riders see up to 4 watts saved, but results vary. Your body type and riding style matter, so test different setups to find what works best for you.
Tip: Always check that your hydration system feels secure and doesn’t mess with your steering. Dropping a bottle or losing control can ruin your ride.
Integrated storage
You need snacks, tools, and maybe a spare tube, but you don’t want extra drag. Integrated storage solves this problem. Modern aero bikes like the Felt IA use built-in storage that hides your gear inside the frame. This design keeps your bike sleek and reduces drag by up to 5 watts at racing speeds. Even small savings matter when you’re chasing a podium.
Early hydration systems strapped bottles to the frame, which slowed you down. Newer systems, like the SpeedFil F1 and Cervelo P4, use frame-mounted bottles with refill ports and straws. These setups tested faster with the bottle installed than without. Behind-the-saddle hydration also works well, keeping bottles out of the wind.
Integrated storage often uses special parts, so check compatibility before you buy.
Hidden cables and storage make your bike look clean and help you stay fast.
Make sure you can reach your snacks and tools without losing your aero position.
Note: The best storage system is one you can use easily while riding. If you have to sit up or slow down to grab a bottle, you lose your aerodynamic edge.
Saddle and fit adjustments
Saddle tilt
Getting your saddle tilt right can make a huge difference in how you feel on your bike. Most pro riders set their saddles with a slight downward angle, usually between -3° and -7°. This tilt lines up your hips with your forward-leaning torso. You get better power transfer and a more comfortable ride, especially during time trials or triathlons. When your saddle is tilted just right, you can hold an aerodynamic position longer without feeling sore.
A good saddle tilt helps you push your weight straight down onto the pedals. You stay comfortable and avoid injuries. If your saddle points too far down, you might slide forward and lose control. If it tilts up too much, you could feel pressure and discomfort. Try small changes and see what feels best for your riding style.
Tip: Adjust your saddle tilt in small steps. Ride for a few days and notice how your hips and legs feel. Comfort leads to better position and more speed.
Lower stem
Lowering your stem is one of the fastest ways to improve your aerodynamic position. When you drop your handlebars, your back gets flatter and your body leans forward. This change shrinks your frontal area and helps you cut through the wind. Pro riders often slam their stems to get as low as possible. You can save nearly 20 watts just by riding in a lower position, which means you go faster with the same effort.
Here’s what happens when you lower your stem:
You get a flatter back and a more streamlined shape.
Your hip angle closes, which boosts aerodynamics but can make pedaling harder if you’re not flexible.
You use your core and glute muscles more, helping you keep power even in a low position.
You might feel strain in your back or shoulders at first, but your body adapts over time.
Stem Height | Aerodynamics | Comfort | Power Output |
|---|---|---|---|
Lower (slammed) | High | Medium | Medium |
Higher | Medium | High | High |
Note: If you want to ride in a lower position, work on your flexibility and core strength. Take your time and let your body adjust. The right setup helps you ride faster and stay comfortable.
Aerodynamic clothing
Tight fit
You want to ride faster without working harder. One of the easiest ways is to wear tight-fitting cycling clothes. When you put on tight apparel, you smooth out your shape and help air move over your body. Loose or wrinkled clothing acts like a parachute. It catches the wind and slows you down. Studies show that tight cycling gear can reduce drag by 4% to 8%. That means you save up to 75 seconds on a 25-mile ride.
Most pro riders use skinsuits made from Lycra or spandex. These materials hug your body and keep fabric from flapping. Some suits even have special textures, like tiny dimples, to reduce drag even more. This is the same idea as the dimples on a golf ball. You get less wake and smoother airflow. When you combine tight clothing with aero helmets, you make your whole setup more aerodynamic.
Tip: Always check that your jersey and shorts fit snugly. If you see wrinkles or loose spots, try a smaller size or a different brand.
Reduce drag
You can reduce drag even further by choosing cycling clothes with smart fabric technology. Some jerseys use smooth fabric on your back to let air slide by. Other parts, like your arms and legs, might have rougher fabric. This roughness creates tiny swirls of air that help the wind stay close to your body. It sounds strange, but this trick actually helps reduce drag.
Here’s a quick table to show how different gear choices stack up:
Gear Choice | Drag Reduction | Comfort Level | Speed Gain |
|---|---|---|---|
Loose jersey | Low | Medium | Low |
Tight jersey | Medium | High | Medium |
Aero skinsuit | High | High | High |
Aero helmets | Very High | High | Very High |
Aero helmets play a big part in your speed. When you wear an aero helmet, you reduce drag around your head and shoulders. This helps you keep your speed up, especially when you ride fast. Many riders use aero helmets in races and time trials. You can use one for your daily rides too. Just make sure your helmet fits well and feels comfortable.
Note: Aero helmets and tight clothing work best together. When you match your helmet and kit, you get the lowest drag and the highest speed.
Aero helmets, tight clothing, and smart fabric choices all help you reduce drag. You ride faster, use less energy, and feel more comfortable. Try these tips on your next ride and see how much speed you can gain.
You can unlock real speed by combining smart equipment setup with the right rider position. Every time you adjust your bike or change your posture, you cut drag and boost speed. Cyclists who test and match their gear to their position see big gains. When you ride in an aero position, you lower resistance and hold higher speed for longer. Over a race, these changes can save you minutes. If you use these tips every ride, you will notice your speed improve. Even small tweaks in your gear or how you sit add up to more speed, better comfort, and stronger results. Keep working on your setup and position, and you will keep finding new speed.
FAQ
How often should you clean your aero bike frame?
You should clean your aero bike frame every week if you ride often. Dirt and sweat build up fast. A clean frame helps you stay fast and keeps your bike looking sharp.
Do deep-section wheels make a big difference in speed?
Deep-section wheels help you cut through the wind. You feel the speed boost most on flat roads. Many riders notice they go faster with less effort.
What is the best way to carry water without adding drag?
Try using aero bottle cages or integrated hydration systems. These keep your bottles tucked away and help you stay aerodynamic. You save time and energy on every ride.
Should you wear an aero helmet for every ride?
You get the most benefit from an aero helmet during races or fast group rides. It reduces drag around your head and shoulders. For daily rides, comfort matters most.
How do you know if your rider position is aerodynamic?
Ask a bike fitter to check your position. You can also use a mirror or take photos. Look for a flat back, bent elbows, and narrow arms. Small changes help you ride faster.
